Flexible Electrical Cable H07V-U Solid Bare Copper Conductor For Power

 China Flexible Electrical Cable H07V-U Solid Bare Copper Conductor For Power supplier

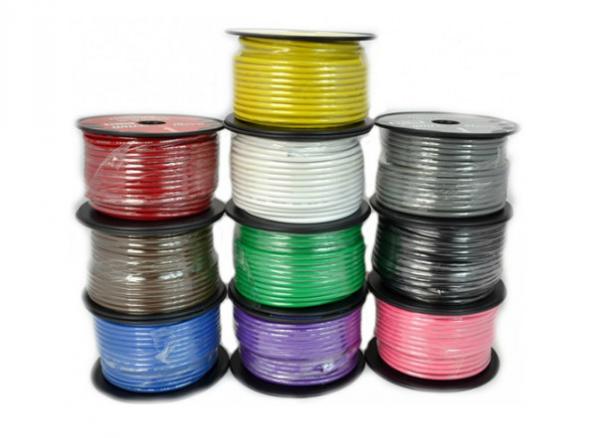

Flexible Electrical Cable H07V-U Solid Bare Copper Conductor For Power image

Get a Quote Email to us

MOQ :
100m

Price :
USD 0.87-2.66/M

Payment Terms :
L/C, T/T

Delivery Time :
7 Days after received deposit

Packaging Details :
Wooden drum

Conductor Type :
Flexible

Sheath color :
Optional

Conductor Material :
Pure Copper

Application :
Industrial,Household

Product name :
Flexible Electrical Cable

Insulation Material :
PVC

Brand Name :
HOLD-ONE

low voltage flame retardant power cable

Flexible Electrical Cable

The product issuitable for power and lighting circuits and building wiring. The cable is intended for use insemi-flush exposed conduits andembedded conduits as well as in closedinstallation ducts,and is ideal for the internal wiring of appliances.

Brief construction

1) Conductor: Copper ,Stranded

2) Insulation: PVC

3) Sheath:PVC

4) Other special characteristics: Design and manufacture according to the requirements of customers.

Flexible Electrical Cable Application

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.

Service performance

1) Long-term working temperature: not be higher than 70°C

2) When laying the cable, the ambient temperature should not lower than 0°C

3) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

Number of cores Normal area
(mm²)
Structure
(m)
Approx overall dia
(mm)
2 cores 0.5 28/0.15 5.2
0.75 24/0.2 6.4
1 32/0.2 6.6
1.5 30/0.25 7.6
2.5 49/0.25 9.4
3 cores 0.5 28/0.15 5.5
0.75 24/0.2 7.2
1 32/0.2 7.2
1.5 30/0.25 8.5
2.5 49/0.25 10
4 56/0.3 11.7
6 84/0.3 13
4 cores 1 32/0.2 8
1.5 30/0.25 9.2
2.5 49/0.25 11
4 56/0.3 12.8
6 84/0.3 15.4
10 126/0.32 18.8
5 core 1.5 30/0.25 10.7
2.5 49/0.25 12.8
4 56/0.3 14.5
6 84/0.3 16.4
10 126/0.32 21.1
16 126/0.40 25.4

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us
Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.

We are China Flexible Electrical Cable H07V-U Solid Bare Copper Conductor For Power manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
