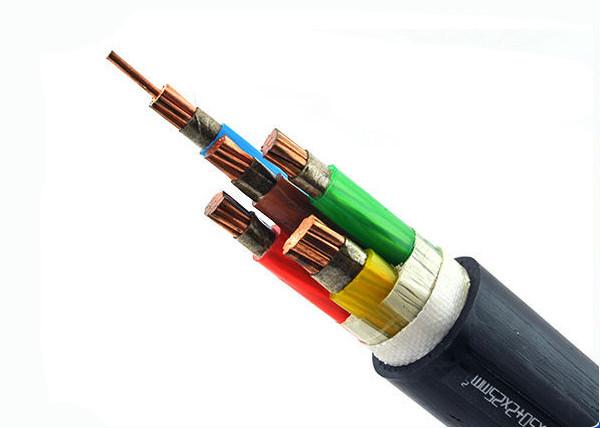

Fire Resistant Power Cable, 2 Core Electrical Cable Mica Tape wrapped LSZH Sheath

Fire Resistant Power Cable, 2 Core Electrical Cable Mica Tape wrapped LSZH Sheath image

Get a Quote Email to us

Brand Name :
Chengtiantai cable

Model Number :
WDZ-YJV

Certification :
CB,CE

Place of Origin :
Mainland, China

MOQ :
500 m

Price :
On request

Payment Terms :
L/C, T/T

Delivery Time :
15 working days

Packaging Details :
Steel wooden drum

Rated Voltage :
0.6/1 kV

Fire Barrier :
Mica-Tape

No. of cores :
2 core

Insulation :
XLPE

Sheath :
LSZH

Package :
Steel wooden drum

Fire resistant cable 2 core 0.6/1 kV Cu-conductor, Mica-tape, XLPE Insulated, LSZH sheathed

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction

1. Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
2. Insulation

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
3. Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
4. Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
5. Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
6. Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

Physical and Electrical Characteristics:


No.cores x cross-sec.	Insulation thickness	Nominal Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃	maximum DC resistance at 20℃
mm²	mm	mm	mm	kg / km	A	A	Ω/km
2×4	1.0	1.8	16.3	388	34	44	4.61
2×6	1.0	1.8	17.3	454	43	53	3.08
2×10	1.0	1.8	20.0	589	58	70	1.83
2×16	1.0	1.8	22.0	748	77	92	1.15
2×25	1.2	1.8	25.5	1029	104	122	0.73
2×35	1.2	1.8	27.8	1276	129	149	0.52
2×50	1.4	1.8	26.5	1487	146	171	0.39
2×70	1.4	1.9	30.3	2178	188	214	0.27
2×95	1.6	2.1	34.2	2800	240	267	0.19
2×120	1.6	2.2	36.5	3365	274	306	0.15
2×150	1.8	2.4	40.0	4059	316	346	0.12
2×185	2.0	2.5	43.8	4984	368	394	0.10

INSTALLATION METHOD DETAILS

A1 – Thermally insolated wall (Single-core)

A2 – Thermally insolated wall (multi-core)

B1 – Apparent electroduct (Single-core)

B2 – Apparent electroduct (multi-core)

B1 – Electroduct in brickwork (Single-core)

B1 – Electroduct in brickwork (multi-core)

C – On the wall

　C – On the ceiling

C – Non-perforated tray

F – Perforated tray (Single-core)

F – Perforated tray (multi-core)

F –Suspended (Single-core)

E – Suspended (multi-core)

B2 – Construction space

B1 – Electroduct (Single-core)

B2 – Electroduct (Multi-core)

B2 – Closed raceway embedded in floor (multi-core)

B1 – Ventilated raceway embedded in floor

C – Embedded in the brickwork

D – Buried in additional mechanical protection

Cable Drum Data

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300

RECOMMENDED ORDERING PARAMETERS

CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 – International or Special Standard. (Alternatively, the precise usage of the cable.)
2 – Rated voltage.
3 – Copper or Aluminium conductors.
4 – Size of each conductor.
5 – Insulation material : XLPE or others.
6 – Number and identification of conductors.
7 – Other requirements.
8 – Packing.
9 – Required delivery time.
10 – Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : [email protected]
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106

WARRANTY

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
