Fire Resistant Low Smoke Zero Halogen Cable LSZH Construction

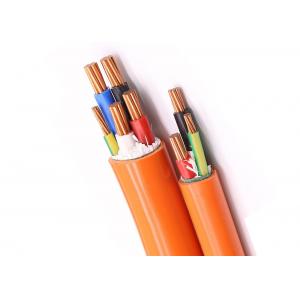

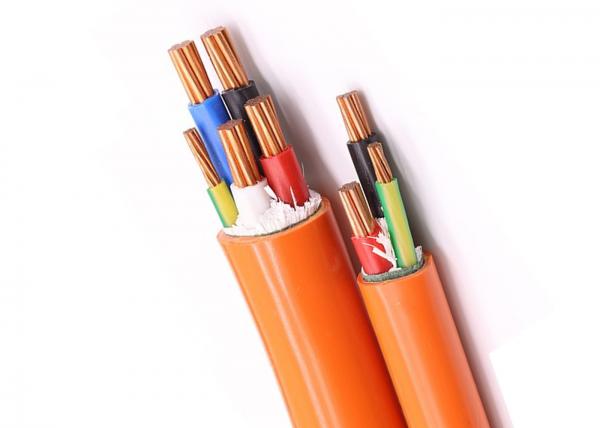

Fire Resistant Low Smoke Zero Halogen Cable LSZH Construction image
Fire Resistant No Halogen Power CableCopper Conductor Power Cable Rated Voltage 0.6/1kV
Specifications
0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Single core Halogen Free, Low Smoke and Fire Resistant Power cable
0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Conductor: Solid or strand copper
Fire barrier: Mica glass tape (over conductor)
Insulation: XLPE
Outer sheath: Halogen free and low smoke
Standard: IEC60228, IEC60552, IEC60332
| Number of cores x cross section | Insulation thickness | Sheath thickness | Overall diameter | Max. Conductor resistance | Inductance | |
| DC at 20°C | AC at 70°C | |||||
| No. xmm2 | mm | mm | mm | ohm/km | ohm/km | mH/Km |
| N2XH (Single Core Power Cables with Mica Glass Tape) | ||||||
| 1 x 1.5 RE | 0.7 | 1.4 | 6.2 | 12.1 | 15.4 | 0.458 |
| 1 x 1.5 RM | 0.7 | 1.4 | 6.4 | 12.1 | 15.4 | 0.458 |
| 1 x 2.5 RE | 0.7 | 1.4 | 6.6 | 7.41 | 9.45 | 0.439 |
| 1 x 2.5 RM | 0.7 | 1.4 | 6.8 | 7.41 | 9.45 | 0.439 |
| 1 x 4 RE | 0.7 | 1.4 | 7.0 | 4.61 | 5.88 | 0.420 |
| 1 x 4 RM | 0.7 | 1.4 | 7.3 | 4.61 | 5.88 | 0.420 |
| 1 x 6 RE | 0.7 | 1.4 | 7.5 | 3.08 | 3.93 | 0.394 |
| 1 x 6 RM | 0.7 | 1.4 | 8.0 | 3.08 | 3.93 | 0.394 |
| 1 x 10 RE | 0.7 | 1.4 | 8.3 | 1.83 | 2.33 | 0.366 |
| 1 x 10 RM | 0.7 | 1.4 | 8.8 | 1.83 | 2.33 | 0.366 |
| 1 x 16 RM | 0.7 | 1.4 | 10.0 | 1.15 | 1.47 | 0.341 |
| 1 x 25 RM | 0.9 | 1.4 | 12.0 | 0.727 | 0.923 | 0.325 |
| 1 x 35 RM | 0.9 | 1.4 | 13.0 | 0.524 | 0.668 | 0.311 |
| 1 x 50 RM | 1.0 | 1.4 | 14.5 | 0.387 | 0.494 | 0.302 |
| 1 x 70 RM | 1.1 | 1.5 | 16.5 | 0.268 | 0.342 | 0.291 |
| 1 x 95 RM | 1.1 | 1.5 | 18.5 | 0.193 | 0.247 | 0.284 |
| 1 x 120 RM | 1.2 | 1.6 | 20.5 | 0.153 | 0.196 | 0.279 |
We are China Fire Resistant Low Smoke Zero Halogen Cable LSZH Construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
