Fire Resistant Cables / Electrical Cable with Low Voltage (0.6kv/1kv )XLPE Insulation Cable

 China Fire Resistant Cables / Electrical Cable with Low Voltage (0.6kv/1kv )XLPE Insulation Cable supplier

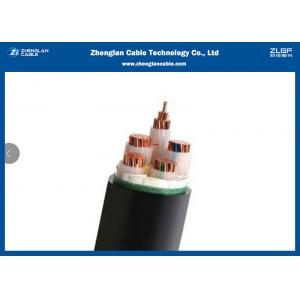

Fire Resistant Cables / Electrical Cable with Low Voltage (0.6kv/1kv )XLPE Insulation Cable image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :ZR-YJV22-0.6/1KV-1*150MM2-#9260
Certification :ISO9001,CCC, CE, Etc
Place of Origin :Henan, China
MOQ :200 meters
Payment Terms :L/C, T/T,
Delivery Time :15-30 days
Packaging Details :Fully wooden drum, steel wooden drum, fully steel drum or customized
Character :Fire Resistant
Insulation Material :XLPE
Size :1.5~1000mm2
Type :Low Voltage
Number of cores :1-5cores
Rated voltage :0.6kv/1kv
Conductor Material :1.5mm2 – 2.5mm2 : Class 1 solid conductor according to BS EN 60228 4mm2 : Class 2 stranded conductor according to BS EN 60228

Industrial Fire Resistant /Electrical Insulated Copper Wire Underground Low Voltage PVC 150 mm Cable

1. Fire Resistant Cable Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Conductor:
1.5mm2 – 2.5mm2 : Class 1 solid conductor according to BS EN 60228
4mm2 : Class 2 stranded conductor according to BS EN 60228
Jacket: Flame Retardant PVC
Sizes: 1.5~1000mm2
Number of cores: 1-5cores
Rated voltage: 0.6kv/1kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

2. Fire Resistant Cable Application
Hard Skin Standard Fire Resistant Cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits. These cables are designed to continue to operate for a period of time in a fire situation. 'Standard' fire resistance is recommended for general use.

3. Fire Resistant Cable Standard
IEC60502

4. Fire Resistant Cable Characteristics
Voltage Rating 300/500V
Operating Temperature -40°C to +90°C Minimum
Bending Radius 6 x overall diameter

Level Manufacturing British standard Applications
Standard fire resistance BS7629-1,
BS EN 50200 PH30, PH60 and PH120
Fire resistant single core cables and multicore cables for BS5839-1 (most fire detection and fire alarm systems), BS5266 (emergency lighting and standard application circuits), and BS8519 (life safety and fire-fighting) category 1 control circuits. Where used under standard BS5839-1, standard fire-resisting cables should be considered to provide sufficient resistance to the effects of fire, with appropriate methods of support and jointing.
Enhanced fire resistance BS7629-1, BS8434-2,
BS EN 50200 PH30, PH60 and PH120
Enhanced fire resistant cables are used in most public or complex buildings requiring emergency systems to remain operational for a minimum of two hours (PH120) in compliance with BS8434-2 and BS8519 category 1 & 2 control circuits. They are used for unsprinklered buildings with phased evacuation, unsprinklered buildings in excess of 30 metres in height, and where the designer, specifier or enforcing authority determines it is necessary on the basis of fire risk.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided

We are China Fire Resistant Cables / Electrical Cable with Low Voltage (0.6kv/1kv )XLPE Insulation Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
