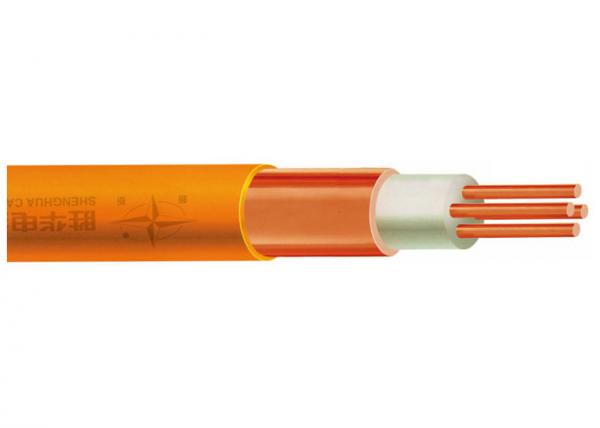

Fire Rated High Temperature Cable IEC60331 Standard Stranded Copper Conductor
Fire Rated High Temperature Cable IEC60331 Standard Stranded Copper Conductor image
Brand Name :
SHAN CABLE
Model Number :
BBTRZ 0.6/1kV 4×70+1×35
Certification :
CE,KEMA,TUV,LPCB
Place of Origin :
SHANGHAI CHINA
MOQ :
200 Meter
Price :
USD 0.11-3.68 /M
Payment Terms :
L/C, T/T
Supply Ability :
687423 M/Week
Delivery Time :
7 Days
Packaging Details :
Wooden Drum,Reel
Jacket :
LSZH
Voltage :
0.6/1KV
Jacket Color :
Orange
Fire-Temp :
950 Degree
Conductor :
Stranded Copper Class 2
Sample :
Free
Insulation :
Mica Tape
Warranty :
2 Years
Port of Loading :
Shanghai China
Test Voltage :
3.5 KV/5Min
CLASS :
B
High Temperature Non-Metallic Sheath 4×70+1×35 Sqmm Lszh Fire Rated Power Cable For Construction
1.Application
Railway Stations, Road &Rail Tunnels, Public Lighting, Car Parks, Public Service Building, Shopping Malls, Airport,Underground Rail Systems, Schools, Hospitals, Hotels, Theatres, Churches, Power Station, Boiler Houses, Oil &Gas Station, Emergency Lifts and so on.
2.Standards
International: GB/T 19216 BS6387 IEC 60331
Cable Type:BBTRZ-0.6/1KV 4×70+1X35SQMM
3.Technical Data
Rated voltage:0.6/1KV
Fire Resistant to 750 ℃/3 Hours.
Commercial Items: MOQ:500m
Price Term: FOB Shanghai or CIF as request.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Drum
4.Specifications:
| Nom. Cross-section of conductor | Insulation Thickness | Sheath Thickness | Norminal Aluminum Sleeve sheath | Nominal thickness of Outer Covering | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) |
| mm2 | mm | mm | mm2 | mm | mm | Kg/km | Ω/km |
| 1×95 | 1.0 | 1.2 | 57.0 | 1.7 | 30.1 | 1682 | 0.193 |
| 1×120 | 1.0 | 1.2 | 63.0 | 1.7 | 31.7 | 1956 | 0.153 |
| 1×150 | 1.3 | 1.2 | 71.9 | 1.8 | 34.3 | 2334 | 0.124 |
| 1×185 | 1.3 | 1.2 | 78.3 | 1.8 | 36.0 | 2745 | 0.0991 |
| 1×240 | 1.3 | 1.2 | 109.1 | 1.9 | 38.9 | 3422 | 0.0754 |
| 1×300 | 1.3 | 1.2 | 120.0 | 2.0 | 41.4 | 4106 | 0.0601 |
| 2×95 | 1.0 | 1.2 | 114.0 | 2.0 | 47.4 | 4039 | 0.193 |
| 2×120 | 1.0 | 1.2 | 126.1 | 2.1 | 50.4 | 4741 | 0.153 |
| 2×150 | 1.3 | 1.2 | 143.7 | 2.2 | 55.8 | 5752 | 0.124 |
| 2×185 | 1.3 | 1.2 | 156.5 | 2.3 | 60.0 | 6809 | 0.0991 |
| 2×240 | 1.3 | 1.2 | 218.3 | 2.5 | 66.0 | 8547 | 0.0754 |
| 2×300 | 1.3 | 1.2 | 240.0 | 2.7 | 71.0 | 10230 | 0.0601 |
| 3×2.5 | 0.7 | 1.2 | 34.0 | 1.8 | 28.2 | 742 | 7.41 |
| 3×4 | 0.7 | 1.2 | 37.8 | 1.8 | 29.3 | 837 | 4.61 |
| 3×6 | 0.7 | 1.2 | 41.9 | 1.8 | 30.3 | 942 | 3.08 |
| 3×10 | 0.7 | 1.2 | 50.4 | 1.8 | 32.7 | 1183 | 1.83 |
| 3×16 | 0.7 | 1.2 | 58.5 | 1.8 | 34.9 | 1449 | 1.15 |
| 4×150 | 1.3 | 1.2 | 287.4 | 2.3 | 67.2 | 8953 | 0.124 |
| 4×185 | 1.3 | 1.2 | 313.1 | 2.4 | 71.7 | 11075 | 0.0991 |
| 4×240 | 1.3 | 1.2 | 436.6 | 2.6 | 78.6 | 14023 | 0.0754 |
| 4×300 | 1.3 | 1.2 | 479.9 | 2.6 | 84.6 | 16890 | 0.0601 |
| 5×95 | 1.0 | 1.2 | 285.0 | 2.3 | 62.4 | 7852 | 0.193 |
| 5×120 | 1.0 | 1.2 | 315.2 | 2.4 | 66.9 | 9332 | 0.153 |
| 5×150 | 1.3 | 1.2 | 359.3 | 2.6 | 71.4 | 11389 | 0.124 |
| 5×185 | 1.3 | 1.2 | 391.3 | 2.8 | 78.8 | 13652 | 0.0991 |
| 5×240 | 1.3 | 1.2 | 545.7 | 3.0 | 86.5 | 17307 | 0.0754 |
| 5×300 | 1.3 | 1.2 | 599.9 | 3.2 | 93.1 | 20876 | 0.0601 |
5.Main proformance fo cable
1.Great fire resistive performance
2.Strong overload protection
3.Large current carrying capaticy
4.High working temperature
5.Waterproof,anticorrosion and explosion-proof property
6.Excellen Shielding property
7.Stong radiation resistance
8.Long service life
9.Small outer diamter and light weight
10.Environmental protection and safety
11.High mechanical strength
12.Bending performance
13.Perfect eatthing
We are China Fire Rated High Temperature Cable IEC60331 Standard Stranded Copper Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
