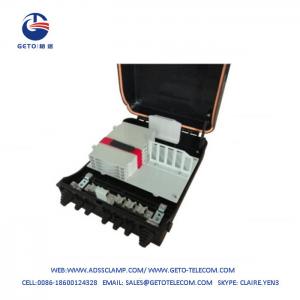

FATS Outdoor Terminal Box 24 Port Outdoor 144 Core 2*3
FATS Outdoor Terminal Box 24 Port Outdoor 144 Core 2*3 image
Brand Name :Geto Telecom
Model Number :OB-DSB-24B
Certification :ISO 9001: 2015
Place of Origin :China
MOQ :1
Price :$10-12
Payment Terms :L/C, T/T
Supply Ability :1000000 Piece/Pieces per Month
Delivery Time :10-15days
Packaging Details :Woven bag + Pallet/ Wooden box
Product Name :24 Port Outdoor FATS
Size :245×296×94.5mm
Max Capacity :144 Core
Maximum entry cable size (mm) :2×φ25mm
Maximum outgoing cable size (mm) :5×φ15mm
Cable outlet size (mm) :2*3
Warranty Time :1 year
Service :OEM ODM
Description
The box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building
Features:
1, Total enclosed structure.
2, Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
4, Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor
installation, easy maintenance.
5, Distribution panel can be flipped up(90 & 180 degree), feeder cable can be placed by expression port, easy for
maintenance and installation.
6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
| Model | Size(Pic 1) A*B*C(mm) |
Max Capacity | Installation Size(Pic 2) D*E*F (mm) |
Maximum entry cable size (mm) |
Maximum outgoing cable size (mm) |
Cable outlet size (mm) |
| OB-DSB-24B | 245×296×94.5 | 144 | 175.5*121*250 | 2×φ25mm | 5×φ15mm | 2*3 |
Product show
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
