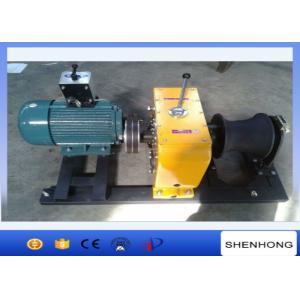

Fast Speed Belt Driven Electric Cable Winch Puller 2.2KW Rated Load For Tower Erection

 China Fast Speed Belt Driven Electric Cable Winch Puller 2.2KW Rated Load For Tower Erection supplier

Fast Speed Belt Driven Electric Cable Winch Puller 2.2KW Rated Load For Tower Erection image

Get a Quote Email to us

Brand Name :SHENHONG
Model Number :JJM1-D
Certification :ISO
Place of Origin :Jiangsu, China
MOQ :2 sets
Price :negotiation
Payment Terms :L/C, T/T
Supply Ability :500 set/sets per month
Delivery Time :7 days after payment
Packaging Details :Standard export wooden case
Type :Electric Winch
Rated load :2.2KW
Weight :48kg
Application :Transmission line erection
Usage :Pulling
Motor :Electromotor

Fast Speed Belt Driven Electric Cable Winch Puller 2.2KW Rated Load For Tower Erection​

Winch Introduction

A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.

Cable Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical shape and coming with steel rope.

Features

1. Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2. Light weight. For example, the weight of 5 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 160 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3. High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4. Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5. Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-D Electric motor Slow 10 0.8 46
Fast 15 0.6
Reverse 12 NO Lifting

Quality Control

We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.

Our Values

1. Take First-Class Quality as Target and First-class Service.

2. As Responsibility, To Succeed By Scientific Management.

3. Customer in Heart, Quality in Hand, Technology in the Lead.

We are China Fast Speed Belt Driven Electric Cable Winch Puller 2.2KW Rated Load For Tower Erection manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
