EPR Insulated Rubber Mining 4/0AWG 15kv Power Cable

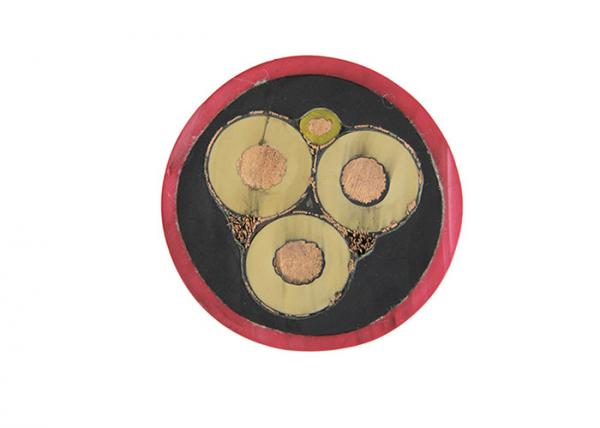

EPR Insulated Rubber Mining 4/0AWG 15kv Power Cable image
NTSCGEWOU SHD-GC SHD-CGC 8.7/15KV Type SHD-GC 3C-4/0AWG Rubber Mining Cable
Cable structure:
No. | Description | Material |
1 | Phase conductor (4/0AWG) | Copper wire, class5 |
2 | Conductor cores | copper |
3 | Conductor shield | Semi-conductive rubber |
4 | Insulation | EPR/EPDM |
5 | Insulation shield | Semi-conductive rubber |
6 | Metal shield | Braiding copper wire with cotton thread |
7 | Ground conductor (1AWG) | Copper wire, class 5 |
8 | Cround check conductor | Copper wire, class 5 |
9 | Insulation | EPR |
10 | Central filler | Rubber |
11 | Filler | Ruber |
12 | Outer sheath | CPE/TPU |
Application:
SHD-GC type is used for heavy medium voltage equipment and lines, used as power cables for the following equipment: mobile and portable mining equipment, loaders, cables, shovels, dredges and drilling rigs, which require flexible life and require internal grounding Check the conductors to increase safety. The SHD-GC type is suitable for applications up to 5,000 volts with a temperature range of -40°C to +90°C.
Customization options:
Other jacket materials can be provided upon request, such as CPE / CSP / PCP / NBR / PVC.
You can choose to add a two-layer jacket with reinforcing fibers.
Standard:
ICEA S-75-381/NEMA WC 58
ASTM B-8
CAN/CSA-C22.2 No.96
Advantage:
We can produce according to the required standard.
Technical parameter:
Cores×Nor. Cross-sectional area mm2 |
Approx. overall diameter mm |
kg/km Approx. weight kg/km |
20℃ Phase Core Insulation Resistance ≥MΩ?km |
3×16+1×16 | 58.5-63.5 | 4648 | 610 |
3×25+3×10 | 56.2-61.2 | 5168 | 550 |
3×35+3×10 | 59.2-64.2 | 5861 | 500 |
3×50+3×16 | 63.1-68.1 | 7166 | 440 |
3×70+3×16 | 69.5-74.5 | 8771 | 390 |
3×95+3×16 | 74.0-79.0 | 10126 | 350 |
3×120+3×25 | 79.0-84.0 | 11827 | 330 |
