EPR Insulated CPE Sheathed Cable Rubber Electrical Cable 0.5mm2 – 300mm2

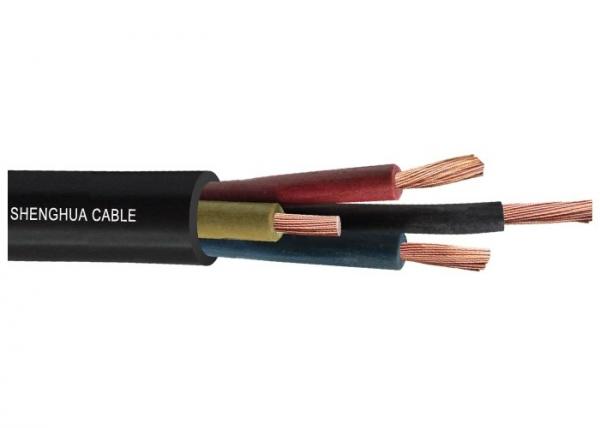

EPR Insulated CPE Sheathed Cable Rubber Electrical Cable 0.5mm2 – 300mm2 image
Brand Name :
SHAN CABLE
Model Number :
YC
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
Wooden Case
Voltage :
450/750V
Size :
0.5mm2 or 300mm2
Conducotor :
Class 5 Copper
Insualtion :
EPR
Sheathed :
CPE
Place Of Origin :
Shanghai
Flexible Copper Conducotor H07RN-F EPR Insulated CPE Sheathed Cable
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Specifications
1 IEC, RN, DIN, BS, GB standard
2 ISO, CCC, KEMA, CE, TUV certification
3 Response within 12 hours
4 Free Sample
5 Factory direct sale
Application
For use at medium mechanical stress in dry, wet and damp locations, as well as in free air. Also for fixed installation on plaster or machines. The cable is resistant to oil, uv-radiation and ozon.
Technical data
Rubber sheathed cable H07 RN-F to DIN VDE 0282 part 4, HD 22.4 S4, BS 7919 equal to IEC 60245-4.
Temperature range
-30℃ to +60℃
Permissible operating temperature at conductor +60℃
Nominal voltage U0/U 450/750 V in case of protected and fixed installation U0/U 600/1000 V
Max. permissible operating voltage in three phase and one phase a.c. system U0/U 476/825V
Direct current-system U0/U 619/1238 V
Test voltage 2500 V
Permanent tensile load
max. 15 N/mm2
Minimum bending radius
For fixed installation 4X cable ø
For guiding over roller 7.5X cable ø
During winding on drums 5-7X cable ø
Cable structure
Copper conductor fine wire stranded, bare to DIN VDE 0295 class5, BS 6360 class5, IEC 60228 class5 and HD 383.
Rubber core insulation EI4 to DIN VDE 0282 part 1
Insulation thickness to DIN VDE 0282 part 4
Core identification to DIN VDE 0293-308
Core colours
-up to 5 cores one-coloured
-6 and more cores, black with numbering
-3 and above, with green-yellow earth core
-2 cores without green-yellow earth core
Cores stranded in layers with optimal lay-length
Outer jacket of rubber black, rubber compound ti DIN VDE 0282 part 1
Sheath thickness to DIN VDE 0282 part 4
Properties
Resistant to
Weather
Test
Test according to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Ozone resistant of the insulation to DIN VDE 0472 part 805, test method A or part 805 A1, test method C
Oil resistant
Test according to EN 60811-2-1
We are China EPR Insulated CPE Sheathed Cable Rubber Electrical Cable 0.5mm2 – 300mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: rubber electrical cable, rubber insulated cable, Rubber Sheathed Cable
