EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables
EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables image
Brand Name :
Hongyan, Hong Xing Yan
Model Number :
RVV-90
Certification :
ISO9001, CE, CCC, RoHS.
Place of Origin :
Shenzhen City, China.
MOQ :
3000 meters each size/specification in an order.
Price :
USD0.8943 per meters.
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200,000 meters per day.
Delivery Time :
Within 7-10 working days as soon as we received the deposit.
Packaging Details :
100 Meters Per Roll, the Rolls Will be Loaded on Wooden Pallet, the Pallet must be showed the IPPC Logo According to ISPM 15 Regulation.
Product Name :
EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables
Product Conductor :
Plain Annealed Copper Wires, Strand Class 5.
Insulated Material :
Soft 90℃ PVC (Polyvinyl Chloride)
Insulated Colour :
Brown, Blue, Yellow/Green.
Sheath Material :
Soft 90℃ PVC (Polyvinyl Chloride)
Voltage Rate :
300/500V (U0/U)
Production Standard :
EN 50525-2-11, GB/T 5023-2008, IEC 60227, or Others.
Product Size :
3×2.5 mm2.
Sheath Colour :
Black, or White.
Working Temperature :
0°C to +90°C
Min. Bending Radius :
6 x Overall Diameter.
Company Certification :
ISO9001, CCC, CE, RoHS, SAA and Others.
EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables.
PRODUCTS DESCRIPTION
EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables. Plain annealed copper wire, class 5 stranded, 90°C soft PVC insulation, 90°C soft PVC Sheath, 300/500V.
PRODUCTS KEY-WORDS
RVV-90, H05V2V2-F, 3092Y, 3093Y, 3094Y, 3095Y, EN 50525-2-11, 3X2.5mm2, RCT Flexible Cables, Multi-cores Flexible Cables, Electric Wire and Cables, Soft PVC Insulated Flexible Cables.
PRODUCTS APPLICATION
BS EN 50525-2-11 H05V2V2-F 309-Y RVV-90 PVC Insulated Flexible Electric Wire and Cables. For internal wiring or supply cords to electrical apparatus, particularly for use in high temperature zones such as lighting applications.
PRODUCTS STRUCTURE
|
Item No. |
Description of Cables |
| Product Name |
EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables. |
| Conductor Material | Plain Annealed Copper Wire, Flexible Stranded Class 5. |
| Conductor Structure | 3C, 84/0.19mm. |
| Insulation Material | Soft 90°C PVC (Polyvinyl Chloride) |
| Insulation Thickness | 3C, 0.8mm. |
| Insulation Colour | Brown, Blue, Black, Grey, White, Yellow/Green. |
| Sheath Material | Soft 90°C PVC (Polyvinyl Chloride). |
| Sheath Thickness | 1.0mm. |
| Sheath Colour | Black or White. |
| Core Number | 3C, 3 Cores |
| Product Size | 3×2.5 mm2. |
| Ref. Out Diameter | 9.7mm. |
| Ref. Net Weight | 170kgs/km. |
| Voltage Rate | 300/500V (U0/U). |
| Max. Conductor Resistance | 7.98 Ω/km in Air at 20℃. |
| Max. Current Carrying | 20A in Air at 25℃. |
| Working Temperature | 0℃ to +90℃. |
| Installation Temperature | 0℃ to +40℃ |
| Production Standard | BS EN 50525-2-11, GB/T 5023-2008, IEC 60227, or Others. |
| Packing Type |
100 Meters Per Roll, the Rolls Will be Loaded on Wooden Pallet, the Pallet must be showed the IPPC Logo According to ISPM 15 Regulation. |
PRODUCTS REMARK
—The above information is only for you reference, please refer the exact technical parameters according to the actual product.
—The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
—Shenzhen Hongyan: Focus on Quality, Foremost Service.
—Shenzhen Hongyan: It's your Production Base, Overseas Warehouse, Purchase Consulant, Marketing Assistant in Wire and Cables industry.
COMPANY OVERVIEW
WHY CHOOSE US?
1) Reasonable Price, Over-value Products, Quickly Delivery, Foremost Services.
2) ISO9001, CCC, CB, CE, RoHS, National Hi-Tech Enterprises, and other certificates.
3) The supplier for State Grid Corporation of China, China Southern Power Grid more than 3 years.
4) Access to 2 expressways within 15 minutes, to Shenzhen airport or seaport within 1.5 hours.
5) 2 professional engineers, 8 rigorous QC staff, total 208 experienced workers.
6) Familiar with international standards, such as GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL and other standards; Can be customized according to customer requirements of various wire and cables.
MAIN PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
PRODUCTS PACKING
PRODUCTS WAREHOUSE
PRODUCTS SHIPMENT
FAQ
1. Are you the manufacturer or trading company?
Shenzhen Hongyan Wire Industry Co., Ltd, is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit our company, we'll pick you up in Shenzhen airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Shenzhen Hongyan can provide the free sample to you, but you will pay the express charges.
3. What's your Minimum Order Quantity?
For electrical wire, the MOQ is 3000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, we suggests that the MOQ of electrical wires should be more than 5000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
We are China EN 50525-2-11 H05V2V2-F 3×2.5mm2 90℃ PVC Insulated Flexible Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: PVC Insulated Electrical WiresSimilar Or Related
-
BS6004 H05VV-F 3183A 3×2.5mm PVC Insulated Arctic Grade Flexible Cable
-
300/300V, H03VV-F Small Size Flexible RVV Electrical Wires And Cables
-
300/500V, H05VV-F Flexible Copper Wire, PVC Insulated, PVC Sheathed RVV Electrical Wires And Cables
-

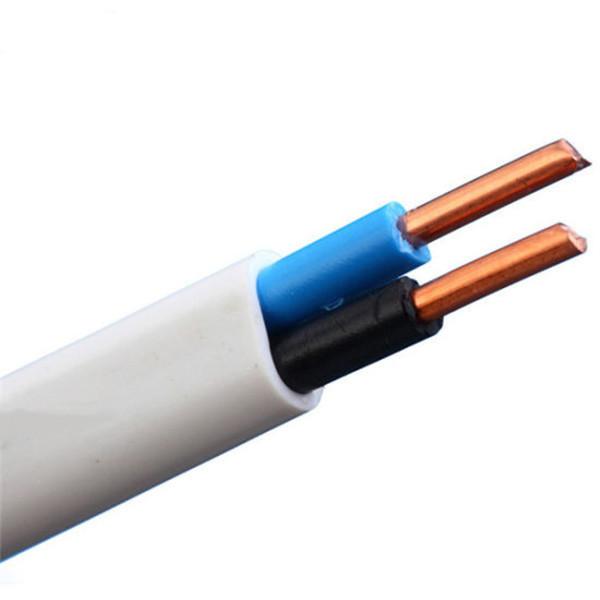

Flat Twin And Earth BVVB Electrical Cable, Meet to IEC 60227 and JB/T 8734-2016, 300/500V
