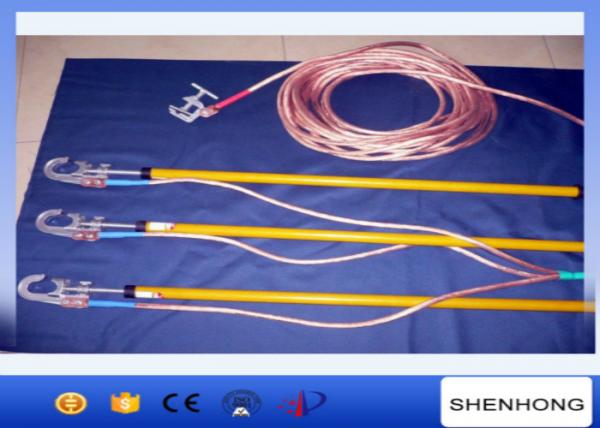

Electrician High Voltage Portable Earthing Equipment 220KV With Ground Clamp
Electrician High Voltage Portable Earthing Equipment 220KV With Ground Clamp image
Brand Name :
SHENGHONG
Model Number :
JDX-220KV
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50pc/day
Delivery Time :
10 days after payment
Packaging Details :
carton
Product Name :
Earthing Device
Usage :
Transmission lines and systems
Material :
super light ,fiberglass material
Warrenty :
1 year
Cross-Section Area :
35mm2
Length :
3×6+6m
Electrician High Voltage Portable Earthing Equipment 220KV With Ground Clamp
1. Product specifications: 16mm2, 25mm2, 35mm2, 50mm2, 70mm2
Also can produce as your request.
2. Product characters:
the hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, hight strength, excellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for protective cover :+40°C.
3. Applications:
1>. Distribution lines and systems
2>.Transmission lines and systems
3>.Substation bus
4>.Underground systems
Can be customerized
4.Data Sheet
| Product | Type |
Cross-Section Area |
Length |
configure |
Usage area |
|
Earth Wire |
JDX-400V | 25mm2 | 4×1.5+12m | 1m double reed needle hook | |
| JDX-10KV | 25mm2 | 3×1+5m | 0.5m hand busbar , ground clip | substation | |
| JDX-35KV | 25mm2 | 3×2+8m | 1m spiral hook ,ground clip | substation | |
| JDX-110KV | 35mm2 | 3×6+6m | 2m double reed hook, ground clip | substation | |
| JDX-220KV | 35mm2 | 3×6+6m | 3m double reed hook, ground clip | substation | |
| JDX-500KV | 50mm2 | 15m/item x3item | Duckbill clamp, ground clip | Iron tower | |
| JDX-10KV | 25mm2 | 3×1.5+10.5m | 1m double reed hook ,ground nail | Wire route | |
| JDX-35KV | 25mm2 | 3×2+18m | 1m double reed hook ,ground nail | Wire route | |
| JDX-110KV | 35mm2 | 15×3 | Duckbill clamp, ground clip | Wire route | |
| JDX-220KV | 35mm2 | 15×3 | Duckbill clamp, ground clip | Wire route | |
|
Note: length can made by your required Barling wire uses electrolysis copper wire .the temperature scope for protective cover :±40℃ |
|||||
