Electrical Transmission Tower Line Steel Lattice Tower 135KV

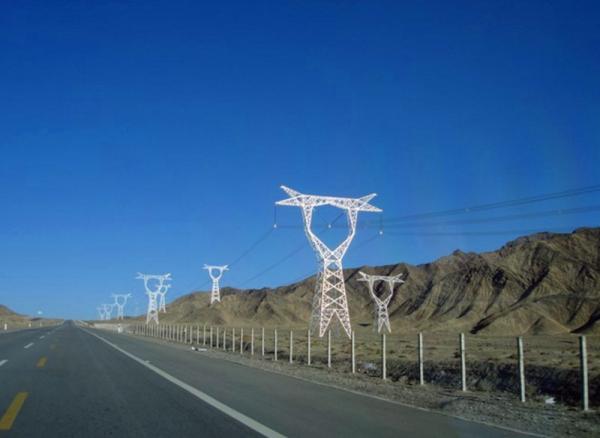

Electrical Transmission Tower Line Steel Lattice Tower 135KV image
Brand Name :
Suntech Power
Model Number :
Steel Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get The Newest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Model :
Electrical Lattice Tower
Item :
Transmission Lattice Tower
Material List :
Steel Q345,etc
Treatment :
Hot Dip Galvanized
Application :
Transmission Line Lattice tower
Lifetime :
20-30 years
135KV Electrical Transmission Tower Line Steel Lattice Tower
Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 80 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
| Product | Substation Structure Tower |
| Height | 5m to 30m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
| Q235B/A36,minimum yield strength>=235n/mm2 | |
| As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 | |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | -0.02 |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape |
| Welding Standard : AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1mm to 30mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data. |
| Style | Size and styles are variable as per customer request |
1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
2. Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
3. Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
Towers may be self-supporting and capable of resisting all forces due to conductor loads, unbalanced conductors, wind and ice in any direction. Such towers often have approximately square bases and usually four points of contact with the ground.
A semi-flexible tower is designed so that it can use overhead grounding wires to transfer mechanical load to adjacent structures, if a phase conductor breaks and the structure is subject to unbalanced loads. This type is useful at extra-high voltages, where phase conductors are bundled (two or more wires per phase). It is unlikely for all of them to break at once, barring a catastrophic crash or storm.
A guyed mast has a very small footprint and relies on guy wires in tension to support the structure and any unbalanced tension load from the conductors. A guyed tower can be made in a V shape, which saves weight and cost.
We are China Electrical Transmission Tower Line Steel Lattice Tower 135KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 135KV Steel Lattice Tower, Electrical Steel Lattice Tower, Q345 Steel Transmission Lattice Tower, Transmission Line Tower
