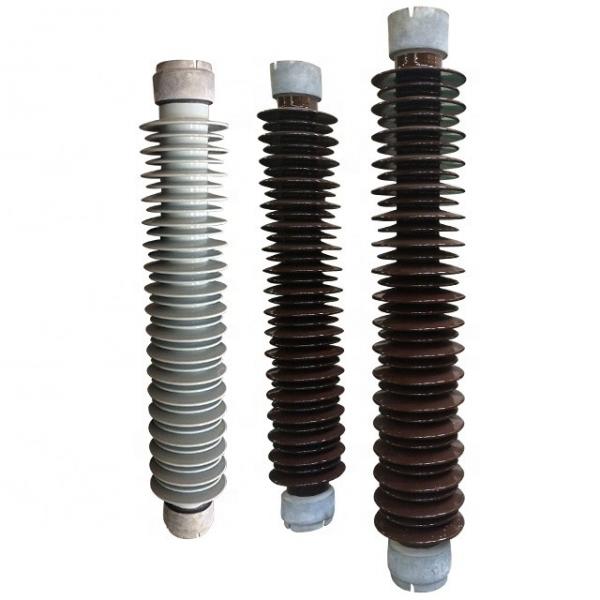

Outdoor Anti-Pollution Electrical Post Ceramic Insulators

The main cause of failure of the overhead line insulator is flashover, which occurs between line and earth during abnormal overvoltage in the system. During this flashover, the huge heat produced by arcing causes puncher in the insulator body. Viewing this phenomenon the materials used for electrical insulator has to possess some specific properties.

Properties of Insulating Material

The materials generally used for the insulating purpose is called insulating material. For successful utilization, this material should have some specific properties as listed below-

  1. It must be mechanically strong enough to carry the tension and weight of conductors.
  2. It must have a very high dielectric strength to withstand the voltage stresses in High Voltage Transmission System.
  3. It must possess high Insulation Resistance to prevent leakage current to the earth.
  4. The insulating material must be free from unwanted impurities.
  5. It should not be porous.
  6. There must not be any entrance on the surface of the electrical insulator so that the moisture or gases can enter it.
  7. There physical as well as electrical properties must be less effected by changing temperature.
Type
Rated Voltage
KV

Mechanical Failing Load

Creepage distance
mm

Main Dimensions,mm

Bending
KN

Torsion
KN.m

H

D

n1.d1-a1

n2.d2-a2

C6-550
126

6

4

3150

1220

255

4*M16-127

4*18-200

C8-550
126

8

4

3150

1220

260

4*M16-127

4*18-200

C10-550
126

10

4

3150

1220

270

4*M16-127

4*18-225

C12.5-550
126

12.5

6

3150

1220

280

4*M16-127

4*18-254

C16-550
126

16

10

3150

1220

290

4*M16-127

4*18-254

C8-650
145

8

6

4612

1500

285

4*18-225

8*18-254

C10-650
145

10

10

4612

1500

305

4*18-225

8*18-254

C12.5-650
145

12.5

10

4612

1500

305

4*18-225

8*18-254

C40-650
145

40

25

5200

1500

345

4*18-275

8*18-275

C6-1050
252

6

3

6300

2300

275

4*M16-127

4*18-225

C8-1050
252

8

4

6300

2300

280

4*M16-127

8*18-254

C10-1050
252

10

6

6300

2300

295

4*M16-127

8*18-275

C12.5-1050
252

12.5

10

6300

2300

315

4*M16-127

8*18-275

C16-1050
252

16

10

6300

2300

330

4*M16-127

8*18-300
