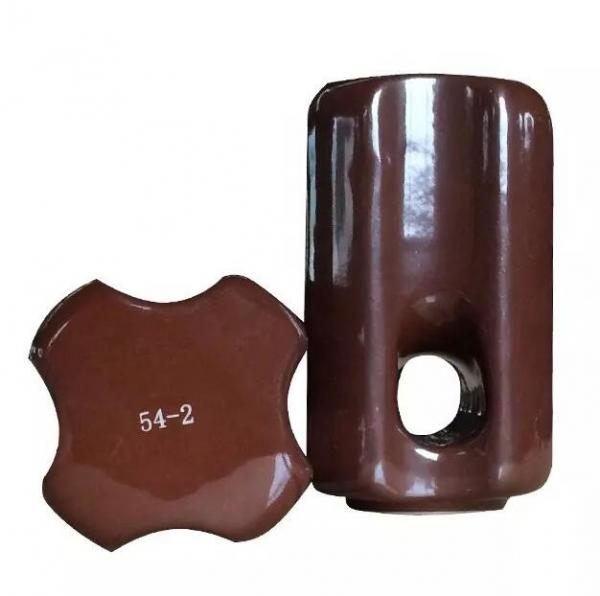

Electrical Ceramic Transmission Line Insulator Glazed Strain 600V

 China Electrical Ceramic Transmission Line Insulator Glazed Strain 600V supplier

Electrical Ceramic Transmission Line Insulator Glazed Strain 600V image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
54-2

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1 PCS

Price :
Get the newest price

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
90,000,000pcs per year

Delivery Time :
30 days after deposit

Packaging Details :
Pallets and Cartons

Material :
Porcelain

Rated Voltage :
600V

Application :
Low Voltage

Tensile Strength :
48KN

Color :
Brown or White

Brown Glazed Strain Electrical Ceramic Insulators

They withstand weights of double digit tons over several decades and thus ensure the safe transportation of energy and power supply across hundreds of miles: our porcelain long-rod insulators. Suntech Insulators produces high quality products for high voltage and railway electricity networks

Our insulators for transmission lines are produced in accordance with international standards and the respective customer specification for applications in the area of energy distribution and transmission in mechanical classes up to 400 kN tensile force. In addition, we also design entire insulator chains from long rods. To improve the outer layer properties our products are also available with silicone coating.

ANSI Class
54-1
54-2
54-3
54-4
GY-2
GY-3
GY-4

Main dimension,mm

D
64

73

86

89

73

115

115

H
89

108

140

171

146

216

280

d
44

54

60

60

44

67

67

d1
16

22

25

25

18

38

38

h
44

57

79

67

73

89

89

h1
64

76

103

114

99

153

165

Creepage Distance,mm
41

48

57

76

76

123

124

Mechanical Failing Load,kN
44

53

89

89

71

222

222

Low Frequency
Flashover Voltage,kv
Dry,Kv
25

30

35

40

20

20

Wet,kV
12

15

18

23

15

40

40

Approx.weight,kg
0.5

0.65

1.2

2.2

We are China Electrical Ceramic Transmission Line Insulator Glazed Strain 600V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
