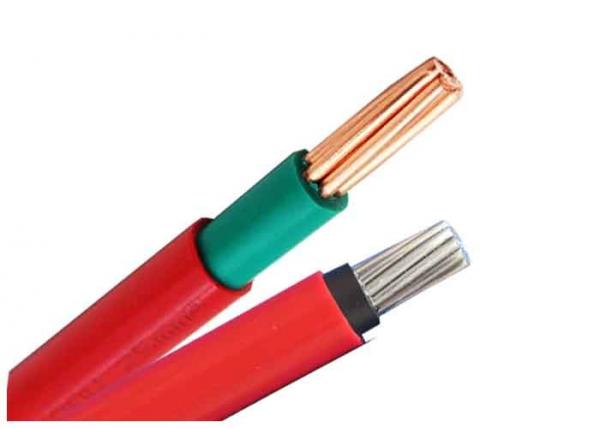

Electric Copper PVC Wire , PVC Single Core Cable Copper Conductor1.5mm2~300mm2

Electric Copper PVC Wire , PVC Single Core Cable Copper Conductor1.5mm2~300mm2 image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
ISO,CE,KEMA GOST

Place of Origin :
China

MOQ :
1000m

Price :
0.33-105 USD/Meter

Payment Terms :
L/C, D/A, D/P, T/T

Supply Ability :
5000KM per month

Delivery Time :
15 working days

Packaging Details :
Wooden iron drum

Application :
Industrial

Type :
Low Voltage

Insulation :
XLPE

Rated voltage :
0.6/1 kV

Test Voltage :
3.5 kV for 5 minutes

Reference Standard :
IEC60502-1

0.6/1kV Stranded Copper Conductor One Core By 1.5mm2~300mm2 PVC Insulated Electric Cable

These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.

Property for Application

a. The allowed max. continuous work temperature for various types of cable conductor cores in 70℃, the max. temperature for short circuit ( 5s) , cable conductor should not exceed 160 ℃.

b. The environmental temperature for laying cable should be not lower than 0 ℃ and the cable bend radius should be not less than 10 times of overall cable diameter.

Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate

Properties

High insulation, excellent properties, bright colour.

Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.

Technical Parameters:

Cross Section	Conductor	Conductor Screen	Insulation	Insulation Screen	Metallic Screen	Inner Sheath	Armour	Screen Layer No.	Outer Sheath	Overall Diameter	Copper Cable	Aluminum Cable
mm2	mm	mm	mm	mm	mm	mm	mm		mm	mm	kg/km	kg/km
50	8.4	0.8	10.5	0.8	0.1	2.0	0.8	2	4	86	8906	7997
70	10	0.8	10.5	0.8	0.1	2.1	0.8	2	4	90	9944	8671
95	11.5	0.8	10.5	0.8	0.1	2.1	0.8	2	4	94	11112	9375
120	13	0.8	10.5	0.8	0.1	2.2	0.8	2	4	97	12253	10059
150	14.5	0.8	10.5	0.8	0.1	2.3	0.8	2	4	101	13557	10800
185	16.2	0.8	10.5	0.8	0.1	2.3	0.8	2	4	105	15059	11645
240	18.4	0.8	10.5	0.8	0.1	2.4	0.8	2	4	110	17249	12837
300	20.5	0.8	10.5	0.8	0.1	2.5	0.8	2	5	115	19603	14061
400	23.5	0.8	10.5	0.8	0.1	2.6	0.8	2	5	122	23151	15874
500	26.5	0.8	10.5	0.8	0.1	2.8	0.8	2	5	129	27045	17807

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
