Electric Aluminium Clad Steel Wire Acs as per ASTM B 502 , Solid Conductor Type:

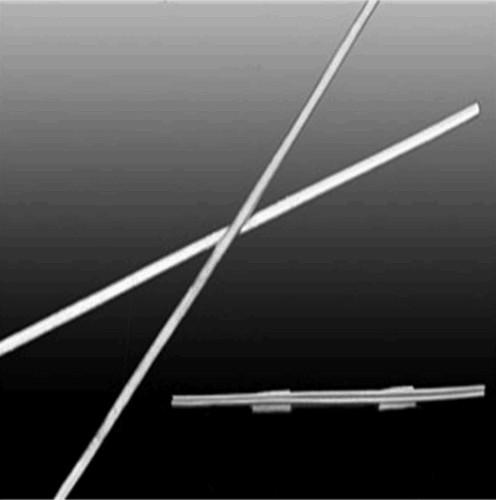

Electric Aluminium Clad Steel Wire Acs as per ASTM B 502 , Solid Conductor Type: image
Brand Name :
Litong Global
Model Number :
LT-170531
Certification :
ISO9001-2008,3C
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
400tons/day
Packaging Details :
standard export packing on drum
Type :
Bare
Conductor Type :
Solid
Conductor Material :
Aluminum Clad Steel
Material Shape :
Round Wire
Range of Application :
Overhead / Heating / Underground
Packed in Iron Wooden Reels :
Packed as Customer Require
Different Grades :
Lb14, Lb20, Lb23, Lb27, Lb30, Lb35 , Lb40
Iacs :
14%, 20.3%, 23%, 27%, 30%, 35% , 40%
Product description:
Aluminum clad steel wire is a piece of round wire made of a round steel core clad with a uniform and continuous aluminum layer. By structure ratio of steel and aluminum, aluminum clad steel wire has different grades, LB14, LB20, LB23, LB27, LB30, LB35 and LB40, with corresponding electric conductivities of 14%, 20.3%, 23%, 27%, 30%, 35% and 40% IACS (IACS stands for International Annealed Copper Standard). Featured by high strength, corrosion resistance and high conductivity, etc., aluminum clad steel wire is widely used in coastal areas, volcano areas, salt atmosphere areas and overhead power line used in areas seriously polluted by industrial materials containing SO2, NO and CO2, etc. It's the optimum material for transmission conductor with kilometric span and carrier cable for electrified railways.
Application: Composition of Al Clad Strand Wires (ACS), Aluminum Conductors, Al Clad Steel Reinforced (ACSR/AW), OCGW,etc.
Standard:
ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389
| Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%) |
||||||||||||
| Nominal Dia | Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight | |||||
| in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft |
| 0.2043 | 5.189 | 4 | 21.150 | 41740 | 1070 | 155000 | 22.60 | 0.259 | 1.222 | 4.009 | 139.32 | 93.63 |
| 0.1880 | 4.775 | 4 | 17.908 | 35342 | 1100 | 160000 | 19.70 | 0.239 | 1.443 | 4.735 | 118.01 | 79.31 |
| 0.1819 | 4.620 | 5 | 16.767 | 33090 | 1140 | 165000 | 18.10 | 0.231 | 1.541 | 5.056 | 110.48 | 74.25 |
| 0.1729 | 4.392 | 5 | 15.150 | 29899 | 1170 | 170000 | 17.73 | 0.220 | 1.706 | 5.597 | 99.84 | 67.10 |
| 0.1620 | 4.115 | 6 | 13.296 | 26240 | 1210 | 175000 | 16.00 | 0.206 | 1.943 | 6.375 | 87.61 | 58.88 |
| 0.1549 | 3.934 | 6 | 12.155 | 23989 | 1240 | 180000 | 15.07 | 0.197 | 2.126 | 6.976 | 80.10 | 53.83 |
| 0.1443 | 3,665 | 7 | 10.549 | 20820 | 1280 | 185000 | 13.50 | 0.183 | 2.450 | 8.038 | 69.47 | 46.69 |
| 0.1369 | 3.477 | 7 | 9.495 | 18739 | 1310 | 190000 | 12.44 | 0.174 | 2.722 | 8.931 | 62.57 | 42.05 |
| 0.1285 | 3.264 | 8 | 8.366 | 16510 | 1340 | 195000 | 11.20 | 0.163 | 3.089 | 10.135 | 55.15 | 37.03 |
| 0.1144 | 2.906 | 9 | 6.633 | 13090 | 1340 | 195000 | 8.92 | 0.145 | 3.896 | 12.783 | 43.70 | 29.37 |
| 0.1019 | 2.588 | 10 | 5.260 | 10380 | 1340 | 195000 | 7.07 | 0.129 | 4.912 | 16.116 | 34.66 | 23.29 |
| 0.0907 | 2.304 | 11 | 4.170 | 8230 | 1340 | 195000 | 5.61 | 0.115 | 6.194 | 20.323 | 27.48 | 18.47 |
| 0.0808 | 2.052 | 12 | 3.309 | 6530 | 1340 | 195000 | 4.45 | 0.103 | 7.811 | 25.628 | 21.80 | 14.65 |
Contact us:
Attn:Ms Nancy
E-mail:[email protected]
Skype:nancylsl
Mobile:86-13855514957
Web:www.greatsteelwirecable.com
We are China Electric Aluminium Clad Steel Wire Acs as per ASTM B 502 , Solid Conductor Type: manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aluminium Clad Steel Wire, aluminum clad steel wire, aluminum stranded conductorSimilar Or Related
