Durable White Control PE Sheathed Cable Anti Extrusion 0.75mm2 – 10mm2

 China Durable White Control PE Sheathed Cable Anti Extrusion 0.75mm2 – 10mm2 supplier

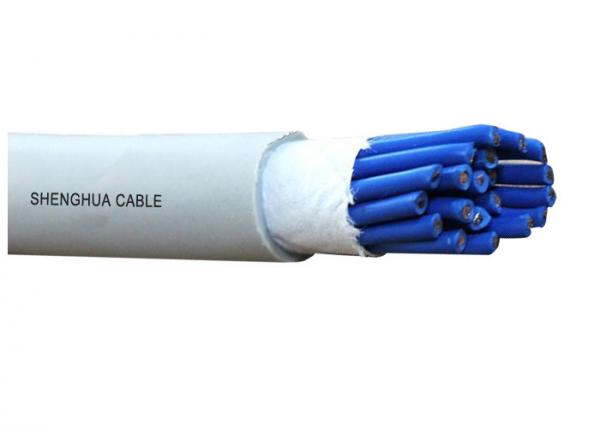

Durable White Control PE Sheathed Cable Anti Extrusion 0.75mm2 – 10mm2 image

Get a Quote Email to us

Brand Name :
SHAN CABLE

Model Number :
KYJY

Certification :
CE/KEMA/CCC/TUV

Place of Origin :
SHANGHAI CHINA

MOQ :
1000m

Price :
USD 0.4 To 10.5 per Meter

Supply Ability :
8KM per Day

Delivery Time :
10-15 Days

Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums

Insualtion :
XLPE

Sheath :
PE

Material :
Copper

Conductor Type :
Class1 or Class2

Cores No. :
2 to 61

Size :
0.75mm2 to 10mm2

Conductor Shape :
Round

Color :
Black or Grey

Durable White Control PE Sheathed Cable Anti Extrusion 0.75mm2 – 10mm2

Construction:

Conductor: Solid or Stranded Copper Conductor

Insualtion: XLPE

Sheath: PE

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (90℃), emergency (100 or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.

Specifications:

Cross-Sectional
Area mm2
Thickness of
Insulation
Thickness of
Sheath
Overall Diameter Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
2×0.75 0.6 1.2 6.7 8.1 0.012 24.5 59
2×1 0.6 1.2 7 8.5 0.011 18.1 67
2×1.5 0.6 1.2 7.9 9.5 0.011 12.1 86
2×2.5 0.7 1.2 9 10.9 0.01 7.41 120
2×4 0.7 1.2 9.9 11.9 0.0085 4.61 167
2×6 0.7 1.2 10.8 13.1 0.007 3.08 220
3×0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3×1 0.6 1.2 7.4 8.9 0.011 18.1 82
3×1.5 0.6 1.2 8.3 10 0.011 12.1 108
3×2.5 0.7 1.2 9.5 11.5 0.01 7.41 154
3×4 0.7 1.2 10.5 12.4 0.0085 4.61 210
3×6 0.7 1.2 11.5 13.9 0.007 3.08 310

FAQ

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

We are China Durable White Control PE Sheathed Cable Anti Extrusion 0.75mm2 – 10mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
