Durable ACSR Aluminum Conductor Aluminum Conductor Steel Reinforced ISO

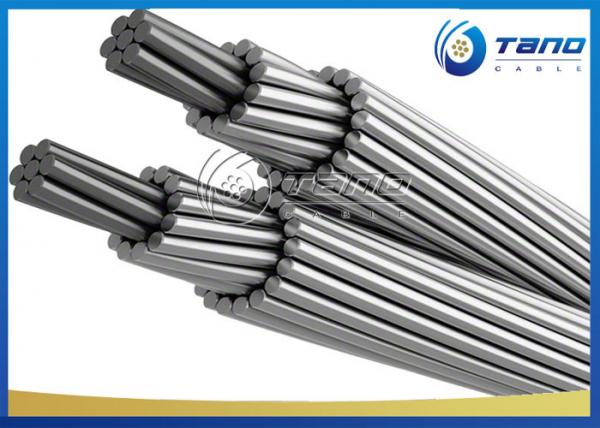

Durable ACSR Aluminum Conductor Aluminum Conductor Steel Reinforced ISO image

Get a Quote Email to us

Brand Name :
TANO CABLE

Model Number :
ACSR

Certification :
ISO

Place of Origin :
Henan, China

MOQ :
5000m

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
200TON/per month

Delivery Time :
7-30days

Packaging Details :
By wooden or steel-wooden drum

application :
overhead transmission

conductor :
aluminum, steel wire

insulation :
without

sheath :
without

name :
ACSR Aluminum Conductor

certification :
ISO

TANO CABLE 95 /15 795 MCM Bare ACSR Conductor Philippines Myanmar Peru Use

Technical specification

Code Number	Nominal Area			No./Nominal diameter of wires		Approximate Overall Diameter	Approximate Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃	Current Rating(*)



	Aluminum	Steel	Total	Aluminum	Steel
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	KN	ohm/km	A
Turkey	13.3	2.22	15.52	6/1.68	1/1.68	5.04	53.6	4.98	2.1499	76
Swan	21.18	3.53	24.71	6/2.12	1/2.12	6.36	85.3	7.83	1.3501	101
Swanate	21.12	5.35	26.47	7/1.96	1/2.61	6.53	99.6	9.79	1.3539	102
Sparrow	33.59	5.6	39.19	6/2.67	1/2.67	8.01	135.7	11.92	0.8512	135
Sparate	33.54	8.55	42.09	7/2.47	1/3.30	8.24	158.7	15.08	0.8525	135
Robin	42.41	7.07	49.48	6/3.00	1/3.00	9	171.1	14.86	0.6742	156
Raven	53.52	8.92	62.44	6/3.37	1/3.37	10.11	216.1	18.33	0.5343	180
Quail	67.33	11.22	78.55	6/3.78	1/3.78	11.34	272	22.46	0.4247	207
Pigeon	85.12	14.19	99.31	6/4.25	1/4.25	12.75	343	28.02	0.3359	239
Penguin	107.22	17.87	125.09	6/4.77	1/4.77	14.31	432.7	35.36	0.2667	275
Waxwing	134.98	7.5	142.48	18/3.09	1/3.09	15.45	430.2	29.8	0.2129	313
Partridge	134.87	21.99	156.86	26/2.57	7/2.00	16.28	545.9	47.15	0.2141	316
Ostrich	152.19	24.71	176.9	26/2.73	7/2.12	17.28	613.4	53.38	0.1897	341
Merlin	170.22	9.46	179.68	18/3.47	1/3.47	17.35	542.8	37.36	0.1688	361
Linnet	170.55	27.83	198.38	26/2.89	7/2.25	18.31	687.5	59.16	0.1693	365
Oriole	170.5	39.78	210.28	30/2.69	7/2.69	18.83	783.3	72.06	0.1698	367
Chickadee	200.93	11.16	212.09	18/3.77	1/3.77	18.85	641.3	43.15	0.143	400
Brant	201.56	26.13	227.69	24/3.27	7/2.18	19.62	761	61.83	0.1433	403
Ibis	201.34	32.73	234.07	26/3.14	7/2.44	19.88	812.4	68.05	0.1434	404
Lark	200.9	46.88	247.78	30/2.92	7/2.92	20.44	925.2	84.07	0.1441	406
Pelican	242.31	13.46	255.77	18/4.14	1/4.14	20.7	769.7	51.15	0.1186	448
Flicker	241.58	31.4	272.98	24/3.58	7/2.39	21.49	913.5	72.06	0.1195	450
Hawk	241.65	39.19	280.84	26/3.44	7/2.67	21.77	975.1	81.84	0.1195	451
Hen	241.27	56.3	297.57	30/3.20	7/3.20	22.4	1110.6	98.3	0.12	453
Osprey	282.47	15.69	298.16	18/4.47	1/4.47	22.35	897.7	59.6	0.1017	492
Parakeet	282.31	36.6	318.91	24/3.87	7/2.58	23.22	1065.6	83.18	0.1023	495
Dove	282.59	45.92	328.51	26/3.72	7/2.89	23.55	1138.6	94.3	0.1022	497
Eagle	282.07	65.82	347.89	30/3.46	7/3.46	24.22	1295.6	114.76	0.1026	499
Peacock	306.13	39.78	345.91	24/4.03	7/2.69	24.19	1158.9	90.74	0.0943	520
Squab	305.83	49.81	355.64	26/3.87	7/3.01	24.51	1237	101.41	0.0944	521
Wood Duck	307.06	71.65	378.71	30/3.61	7/3.61	25.27	1408.4	121.43	0.0943	525

ACSR WITH HIGH STRENGTH STRANDING

Grouse	40.54	14.12	54.66	8/2.54	1/4.24	9.32	221.4	21.75	0.7089	153
Petrel	51.61	30.1	81.71	12/2.34	7/2.34	11.7	377.7	42.08	0.5595	181
Minorca	56.11	32.73	88.84	12/2.44	7/2.44	12.2	411.1	45.81	0.5146	191
Leghorn	68.2	39.78	107.98	12/2.69	7/2.69	13.45	499.2	55.16	0.4234	215
Guinea	80.36	46.88	127.24	12/2.92	7/2.92	14.6	589.7	64.94	0.3593	238
Dotterel	89.41	52.15	141.56	12/3.08	7/3.08	15.4	656.1	70.28	0.323	254
Dorking	96.51	56.3	152.81	12/3.20	7/3.20	16	707.8	75.62	0.2992	267
Cochin	107.04	62.44	169.48	12/3.37	7/3.37	16.85	783.9	84.07	0.2698	284
Brahma$	102.79	91.78	194.57	16/2.86	19/2.48	18.12	1003.8	114.76	0.2809	283

$ The items marked with "$" are not in our current product range and the details are for information only.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation
of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80° C.

ALUMINIUM CONDUCTORS STEEL REINFORCED – ACSR

Standard

AMERICAN SIZES

ASTM B 232/B 232M

FAQ

Q1. Are you a manufacturer?

Yes, we are a manufacturer own factory with almost 30 years experiences.

Q2. What are your main products?

Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System

Q3. How can I get samples?

Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.

Q4. What is our payment terms ?

We can accept the following payment terms: T/T, L/C

Q5. What’s the package of products ?

The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.

Packing

Factory workshop

Customers' visit

We are China Durable ACSR Aluminum Conductor Aluminum Conductor Steel Reinforced ISO manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
