Double PVC Jacket Electrical Cable Wire BVV 7 Stranded Copper

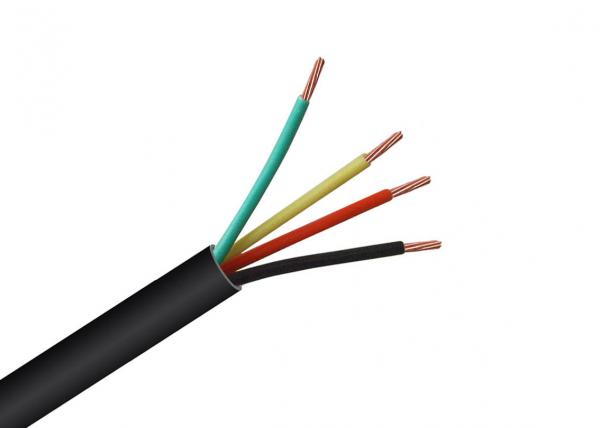

Double PVC Jacket Electrical Cable Wire BVV 7 Stranded Copper image
Brand Name :
SHANCABLE
Model Number :
BVV 7strands
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Name :
PVC Insulation Electrical Wire Cable
Insulation Material :
PVC
Packing :
100m/roll or 100Yard/Coil
Conductor :
Copper or CCA
type :
insulated
Rated Voltage :
300/500V, 450/750V
Standard :
60227 IEC 53
Application :
Lighting for building.
7 stranded copper with double PVC Insulation PVC Jacket BVV Electrical Cable Wire. 2 – 5 Cores x1.5, 2.5 to 6sqmm
Applications
Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
| item | value |
| Place of Origin | China |
| Shanghai | |
| Brand Name | SAHN, OEM |
| Model Number | VV, VVR, VV32, VV62 |
| Insulation Material | PVC |
| Type | LOW VOLTAGE |
| Application | Power Station |
| Conductor Material | Copper |
| Jacket | PVC |
| Standard | IEC60502 |
| Certificates | CE, RoHS, CCC, KEMA |
| Special requiremets | Armour, LSZH, Fire-resistant |
| Warranty | 2 years since delivery |
Technical data
Rated voltage:300/500 V, 450/750V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Descriptions
Light PVC Sheathed Cable for fixed wiring.
Code designation: 60227 IEC 10 (International), BVV 300/500V(China)
Constructions
① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C
③ Inner Covering
④ Overall Sheath: PVC type ST4
Note: Insulation color as per standards or at request
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X1.5(A) | 2×1/1.38 | 10.0 | 109 |
| 2X1.5(B) | 2×7/0.52 | 10.5 | 123 |
| 2X2.5(A) | 2×1/1.78 | 11.5 | 157 |
| 2X2.5(B) | 2×7/0.68 | 12.0 | 172 |
| 2X4(A) | 2×1/2.25 | 12.5 | 205 |
| 2X4(B) | 2×7/0.85 | 13.0 | 222 |
| 2X6(A) | 2×1/2.76 | 13.5 | 265 |
| 2X6(B) | 2×7/1.04 | 14.0 | 286 |
| 2X10 | 2×7/1.35 | 17.5 | 471 |
| 3X1.5(A) | 3×1/1.38 | 10.5 | 136 |
| 3X1.5(B) | 3×7/0.52 | 11.0 | 146 |
| 3X2.5(A) | 3×1/1.78 | 12.0 | 190 |
BVV 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 3×2.5(B) | 3X7/0.68 | 12.5 | 207 |
| 3X4(A) | 3X1/2.25 | 13.0 | 252 |
| 3X4(B) | 3X7/0.85 | 13.5 | 272 |
| 3X6(A) | 3X1/2.76 | 14.5 | 344 |
| 3X10 | 3X7/1.35 | 19.0 | 574 |
| 4X1.5(A) | 4X1/1.38 | 11.5 | 164 |
| 4X1.5(B) | 4X7/0.52 | 12.0 | 174 |
| 4X2.5(B) | 4X7/0.68 | 13.5 | 252 |
| 4X4(A) | 4X1/2.25 | 14.5 | 321 |
| 4X4(B) | 4X7/0.85 | 15.0 | 346 |
| 4X6(A) | 4X1/1.04 | 16.0 | 470 |
| 4X6(B) | 4X7/2.76 | 17.0 | 439 |
| 5X1.5(A) | 5X1/1.38 | 12.0 | 192 |
| 5X1.5(B) | 5X7/0.52 | 12.5 | 205 |
| 5X2.5(A) | 5X1/1.78 | 14.0 | 272 |
| 5X2.5(B) | 5X7/0.68 | 14.5 | 292 |
| 5X4(A) | 5X1/2.25 | 16.0 | 397 |
| 5X4(B) | 5X7/0.85 | 17.0 | 418 |
| 5X6(A) | 5X1/2.76 | 17.5 | 518 |
| 5X6(B) | 5X7/1.04 | 18.5 | 550 |
We are based in Shanghai, China, start from 2002,sell to Domestic Market(85.00%),Mid East(6.00%),Southeast Asia(4.00%),South America(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Power Cable,Control Cable,PVC Cable Wires,Rubber Sheath Cable,Special Cables,ACSR,ACCC Conductors
4. why should you buy from us not from other suppliers?
We specialize in cable and wire field for 27 years, with best quality and competitive price, and we are 10 year Alibaba Gold supplier. More services we can provide 1. professional Free Design.2. OEM Support. 3. Low MOQ. 4. Fast Delivery. 5. Free Sample.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are China Double PVC Jacket Electrical Cable Wire BVV 7 Stranded Copper manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
