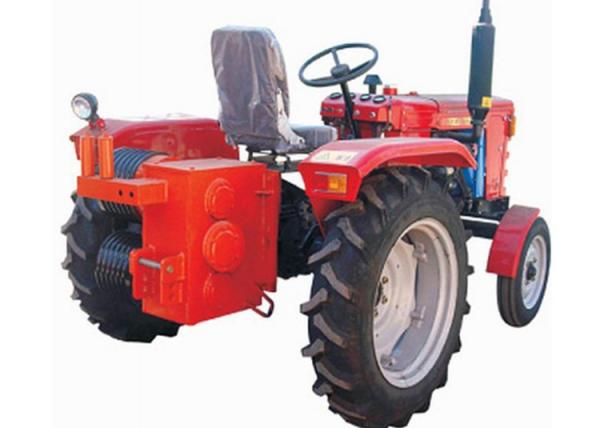

Double Drum Tractor Drawn Winch , Walking Tractor Winch Machine
Double Drum Tractor Drawn Winch , Walking Tractor Winch Machine image
Brand Name :
Suntech
Model Number :
SX4-V1
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
In Stock
Packaging Details :
Exported Containers
Supply Ability :
100pcs per month
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Power Source :
Electric, diesel engine
Application :
Power Construction
Type :
Tractor winch
Capacity :
5T or 8T
Usage :
Hositing;pulling
Double Drum Tractor Drawn Winch , Walking Tractor Winch Machine
Application
Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Features
Four gear,forward gear and reverse gear
Double drum,seven groove,protect the wire rope
speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.
It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)
Specifications:
| Item number | 08126 | Power | 22KW | Model | SX4-V1 | |
| Gear | Ⅰ | Ⅱ | Ⅲ | reversalⅠ | ||
| Traction force(KN) | 40 | 30 | 20 | – | ||
| Traction speed(M/MIN) | 12 | 21 | 38 | 11 | ||
| bottom of groove diameter | Φ300mm | |||||
| Number of groove | 6 | |||||
| Weight(KG) | 1740kg | |||||
| outline size | 2900x14000x1440mm | |||||
We are China Double Drum Tractor Drawn Winch , Walking Tractor Winch Machine manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
