Din 48204 Galvanized Aluminium Steel Reinforced Conductor

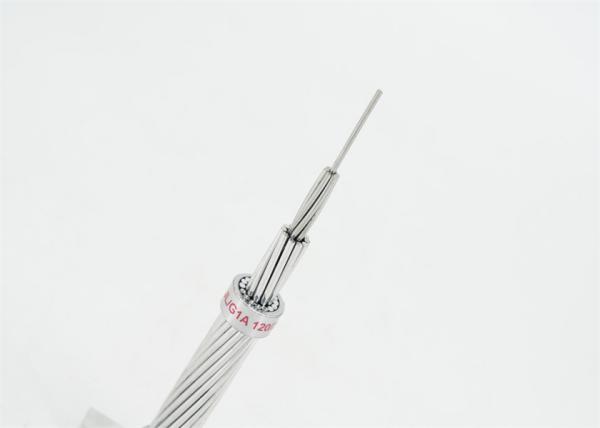

Din 48204 Galvanized Aluminium Steel Reinforced Conductor image
Brand Name :
Sanwu
Model Number :
DIN 48204
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Product Name :
ACSR(GZ)
Material :
Aluminum conductor steel reinforced (GZ) Zinc-coated ACSR
Conductor :
Aluminum
Steel wire :
Galvanized
Size :
QUINCE,RAISIN,SUPER SULTANA,SULTANA,Almond, Apricot,APPPLE,,Banana, CHERRY,GRAPE, LEMON
Standard :
DIN 48204
DIN 48204 ACSR 16/2.5 25/4 50/30mm2 Bare Aluminum conductor steel reinforced ACSR
SINCE 2016
1. APPLICATION
Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminium, chosen for its good conductivity, low weight, low cost, resistance to corrosion and decent mechanical stress resistance. The centre strand is steel for additional strength to help support the weight of the conductor. Steel is of higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor.
2. STANDARDS
DIN 48204, or EN 50182/2001
Characteristics of aluminium conductors steel reinforced used in Germany – Type AL1/ST1A Technical data according to EN50182/2001
ACSR – Aluminium conductors steel reinforced
3. CONSTRUCTION
(1) Steel part: Zinc- coated steel wires, one wire or multi-wires concentric stranded
(2) Aluminium part: Hard drawn aluminium wires, concentric stranded
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
| Area | Standing and wire diameter | Overall diameter | Nominal breaking load | Maximum resistance at 20°C | Current Rating | |||||
| Nominal. | Actual | Total. | ||||||||
| Al/Steel | Al | Steel | Total | Aluminum | Steel | |||||
| mm 2 | mm 2 | mm 2 | mm | mm | mm | kg/km | daN | Ω/km | A | |
| 16/2.5 | 15 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 62 | 595 | 1.878 | 105 |
| 25/4.0 | 23.8 | 4 | 27.8 | 6/2.25 | 1/2.5 | 6.8 | 97 | 920 | 1.2002 | 140 |
| 35/6.0 | 34.3 | 5.7 | 40 | 6/2.70 | 1/2.70 | 8.1 | 140 | 1265 | 0.8352 | 170 |
| 44/32.0 | 44 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 372 | 4500 | 0.6573 | 220 |
| 50/8.0 | 48.3 | 8 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 196 | 1710 | 0.5946 | 210 |
| 50/30 | 51.2 | 29.8 | 81 | 12/2.33 | 7/2.33 | 11.7 | 378 | 4380 | 0.5643 | 223 |
| 25903 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 284 | 2680 | 0.413 | 290 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 383 | 3575 | 0.3058 | 350 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16 | 712 | 7935 | 0.2992 | 352 |
| 105/75 | 105.7 | 75.5 | 181.5 | 14/3.10 | 9/2.25 | 17.5 | 891 | 10845 | 0.2735 | 385 |
| 120/20 | 121.06 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 494 | 4565 | 0.2374 | 410 |
| 120/70 | 122 | 71.3 | 193.3 | 12/3.60 | 7/3.60 | 18 | 90 | 10000 | 0.2364 | 410 |
| 125/30 | 127.9 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 591 | 5760 | 0.2259 | 425 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 605 | 5525 | 0.1939 | 470 |
| 170/40 | 171.8 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 794 | 7675 | 0.1682 | 520 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19 | 746 | 6620 | 0.1571 | 535 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 850 | 7490 | 0.138 | 590 |
| 210/50 | 212.1 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21 | 981 | 9390 | 0.1362 | 610 |
| 230/30 | 230.9 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21 | 877 | 7310 | 0.1249 | 630 |
| 240/40 | 243 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 987 | 8640 | 0.1188 | 645 |
| 265/35 | 263.7 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 1002 | 8305 | 0.1094 | 680 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 1236 | 10700 | 0.09487 | 740 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 1160 | 9940 | 0.0949 | 740 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25 | 1180 | 9290 | 0.08509 | 790 |
| 380/50 | 382 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27 | 1453 | 12310 | 0.08509 | 840 |
| 385/35 | 386 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1344 | 10480 | 0.07573 | 850 |
| 435/55 | 434.03 | 59.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1653 | 13645 | 0.07478 | 900 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1561 | 12075 | 0.06656 | 920 |
| 490/65 | 490.3 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1866 | 15310 | 0.06434 | 960 |
| 495/35 | 494.1 | 34.1 | 528.2 | 45/3.74 | 7/2.49 | 29.9 | 1646 | 12180 | 0.05846 | 968 |
| 510/45 | 510.2 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1778 | 13665 | 0.05655 | 980 |
| 550/70 | 550 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 2092 | 17060 | 0.05259 | 1020 |
| 560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1954 | 14895 | 0.0514 | 1040 |
| 570/40 | 565.5 | 39.5 | 610.3 | 45/4.00 | 7/2.68 | 32.2 | 1888 | 13900 | 0.05108 | 1040 |
| 650/45 | 698.5 | 45.3 | 653.49 | 45/4.30 | 7/2.87 | 34.4 | 2163 | 15552 | 0.0442 | 1280 |
| 680/85 | 678.8 | 86 | 764.8 | 54/4.00 | 19/2.40 | 36 | 2570 | 21040 | 0.0426 | 1150 |
| 1045/45 | 1045.58 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43 | 3249 | 21787 | 0.0277 | 1570 |
4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.
(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
5. Available Samples
6. Factory Cable making machines
7. Packing&Delivery
We are China Din 48204 Galvanized Aluminium Steel Reinforced Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aluminium Conductor Steel Reinforced, din 48204 aluminium steel reinforced conductor, din 48204 steel reinforced aluminium conductor, galvanized aluminium steel reinforced conductor
