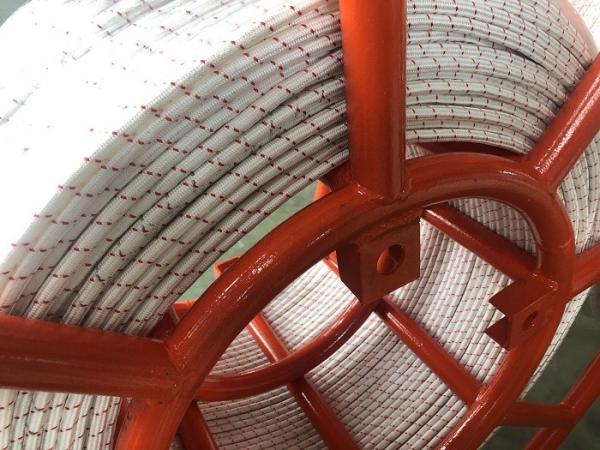

Diameter 4mm Silk Insulated Double Braided Nylon Rope
Diameter 4mm Silk Insulated Double Braided Nylon Rope image
Brand Name :
Suntech
Model Number :
Braided Nylon Rope
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
500 meter
Price :
Get Newest Price
Payment Terms :
T/T, L/C, MoneyGram,Western Union
Supply Ability :
300000meter/month
Delivery Time :
7-9 days after deposit
Packaging Details :
Steel Roll or Containers
Rope Material :
Nylon Braided Rope
Name :
Silk Nylon Rope
Usage :
Construction Rope
Item :
4-30mm
Feature :
High Strength
Color :
Customized
Double Silk Insulated Braided Nylon Rope , Multi Color Cable Pulling Rope
Quick Information
Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope
1 | Products Name | hot sale high strength soft double braided nylon rope |
2 | Brand | Lingsheng |
3 | Material | nylon,polyamide |
4 | Color | (Any color is valid, as you need) |
5 | Certification | ISO9001 |
6 | Minimum Quantity | 500M |
7 | Package | roll,coils,bundles or reel.(carton,woven bag) |
8 | Delivery Time | Within 10-20Days afer receiving the deposit |
Feature:
Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope
1. Material:100% polyester/polyamide/nylon
2. Type:Braided or twisted rope
3. Spefication:Diameter from 4mm-30mm; and we can design according to your needs
4. Color:White, black, red, yellow, blue and green or others
5. Usage:For entertainment, camping or others
6. Packing:Pack it in rolls or according to your needs
7. OEM is available
8. Certification:ISO
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Date Sheet
Double Braided Nylon Rope Weave Silk Insulated Rope,Cable Pulling Rope
Diameter(mm) | Diameter(Inch) | Weight(kg/220M) | Breaking strength | |
Polyester | Nylon | |||
4 | 5/32 | 2.21 | 290kg | 320kg |
5 | 3/16 | 3.45 | 400kg | 500kg |
6 | 7/32 | 4.96 | 550kg | 750kg |
7 | 1/4 | 6.75 | 760kg | 1000kg |
8 | 5/16 | 8.82 | 1000kg | 1300kg |
9 | 11/32 | 11.16 | 1200kg | 1700kg |
10 | 3/8 | 13.78 | 1600kg | 2000kg |
12 | 1/2 | 19.85 | 2300kg | 3000kg |
14 | 9/16 | 27.01 | 3100kg | 4000kg |
16 | 5/8 | 35.28 | 4100kg | 5300kg |
18 | 3/4 | 44.66 | 5000kg | 6700kg |
20 | 13/16 | 55.13 | 6300kg | 8200kg |
Weave Silk Insulated Rope Application to cable pulling rope Introduction
The double layer braided nylon rope is used for pulling OPGW under hotline condition. It is specially braided from polyamaid fiber with double layer.
The rope is insulated with high strength pulling force, low elongation, light weight and wear-proof in the line stringing operation.
Product Description
Rope Size: 6-20mm
Rope Material: Polyester, PP,
Rope Color: any color available
Rope Structure:16 strands,24 strands
Rope Packing: roll, hank, reel
High strength great resistance
We are China Diameter 4mm Silk Insulated Double Braided Nylon Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
