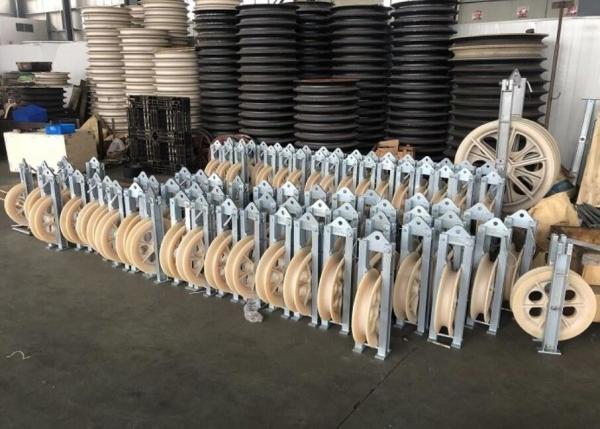

Dia 660mm Single Sheave Nylon Wheel Bundled Conductor Stringing Blocks
Dia 660mm Single Sheave Nylon Wheel Bundled Conductor Stringing Blocks image
660mm Nylon Wheel Used To Large Diameter Bundled Conductor Stringing Block Pulley
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120×30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160×40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200×40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200×60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250×40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250×60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270×60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320×60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400×80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,
swivel connectors, and pulling rope connectors can pass through the groove.
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10101 | SHD508 | 300-400 | 20 | 18 | Aluminum alloy |
| 10104 | SHDN508 | 300-400 | 20 | 16 | MC Nylon |
| 10104A | SHDN508X100 | 300-400 | 20 | 17 | MC Nylon |
| 10102 | SHS508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105 | SHSLN508 | 300-400 | 40 | 47 | |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10107A | SHSQN508X100 | 400 | 40 | 46 | |
| 10108 | SHWQN508 | 300-400 | 60 | 70 | |
| 10108A | SHWQN508X100 | 300-400 | 60 | 76 |
Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures.
Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in
aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
We are China Dia 660mm Single Sheave Nylon Wheel Bundled Conductor Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: conductor stringing blocks, Conductor Stringing Blocks Dia660mm, Conductor Wire Pulling Blocks, Nylon Wheel Bundled Conductor Stringing BlocksSimilar Or Related
