DC 1.5KV PV1-F Solar Pv Cable XLPE / XLPO Wire 4mm2 6mm2 For Solar Panel

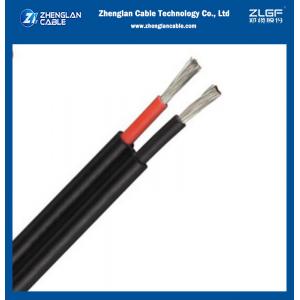

DC 1.5KV PV1-F Solar Pv Cable XLPE / XLPO Wire 4mm2 6mm2 For Solar Panel image
DC 1.5KV/AC1kv XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panel:
A solar cable is an interconnect cable used in the photovoltaic industry to interconnect solar panels and other electrical components. They tend to feature easy installation, UV resistance, reliable service life, outdoor durability, flexibility, etc.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
DC 1.5KV/AC1kv XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panel CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
DC connection:
The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.
DC 1.5KV/AC1kv XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panel Technical Date:
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
DC 1.5KV/AC1kv XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panel specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1×16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1×25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1×35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |
DC 1.5KV/AC1kv XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panel images:
We are China DC 1.5KV PV1-F Solar Pv Cable XLPE / XLPO Wire 4mm2 6mm2 For Solar Panel manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
