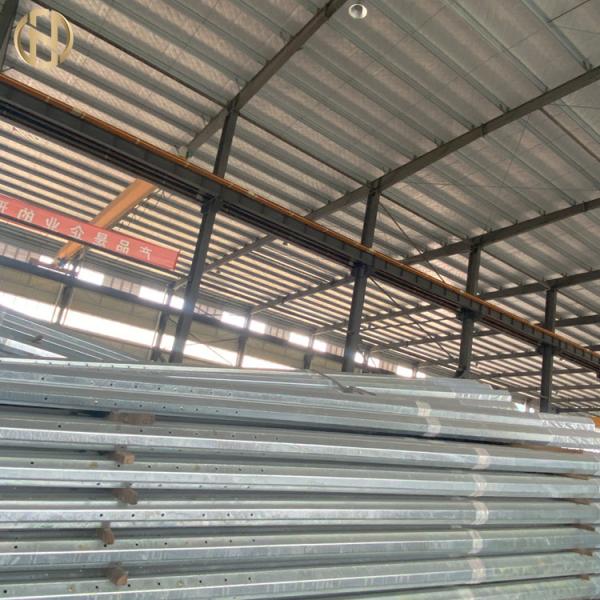

Customized Size Metal Power Pole , 69KV 90FT Steel Electric Pole Q460C
Customized Size Metal Power Pole , 69KV 90FT Steel Electric Pole Q460C image
Brand Name :
FUTAO
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
2 pieces
Price :
4000CNY TO 10000CNY
Payment Terms :
L/C, T/T
Supply Ability :
Please talk with our staffs to get more details
Delivery Time :
36 workdays
Packaging Details :
Wrap by mat or straw mat
Model Number :
69KV
application :
power transmission
Thickness :
4,4.5,5,6,8mm
Material :
Q460C
Dimension torlance :
+/-2%
galvanized :
ASTM 123
Welding stardand. :
AWS D 1.1
69kv Metal Power Pole, any height and thickness, any color 90ft steel utility pole
Product Description
The products above are steel utility poles made specifically for p69kv Metal Power Pole, any height and thickness, any color 90ft steel utility pole
- Products are designed and manufactured according to ANSI/TIA-222-G structural standards
- Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
- Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
- Pole shaft material :Q460C, With 4 to 8mm
- Material code : GB/T1591-2008,GB/T700-2006
- We accommodate various designs according to our customers’ specifications
To design in accordance with PLS poles software, we will require the following design parameters:
base on load tree and wind speed
Product Specifications
|
Product Name |
69kv Metal Power Pole, any height and thickness, any color 90ft steel utility pole |
|---|---|
|
Suitable Uses |
Power Distribution |
|
Shape |
Tubular, 12-Side. |
|
Material |
Q460C , YS>460Mpa, TS>560Mpa |
|
Tolerance of Dimensions |
+- 1.5% |
|
Power |
69KV |
|
Safety Factor |
Safety factor for conducting wire: 3 |
|
Design Load in Kg |
1050 to 1150kg at top section. |
|
Engraving |
buird |
|
Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
|
Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode |
|
Design of Poles |
Against earthquake of 8 grade |
|
Wind Resistance |
210 km/h or 60m/s |
|
Minimum Yield Strength |
|
|
Min to Max Ultimate Tensile Strength |
490 mpa – 620 mpa |
|
Standard |
ISO 9001 |
|
Length per Section |
Within 14m once formed without slip joint |
|
Welding |
Internal and external double welding process produces a seamless surface |
|
Thickness |
4,4.5, 5, 6, 8mm |
Packaging & Shipping

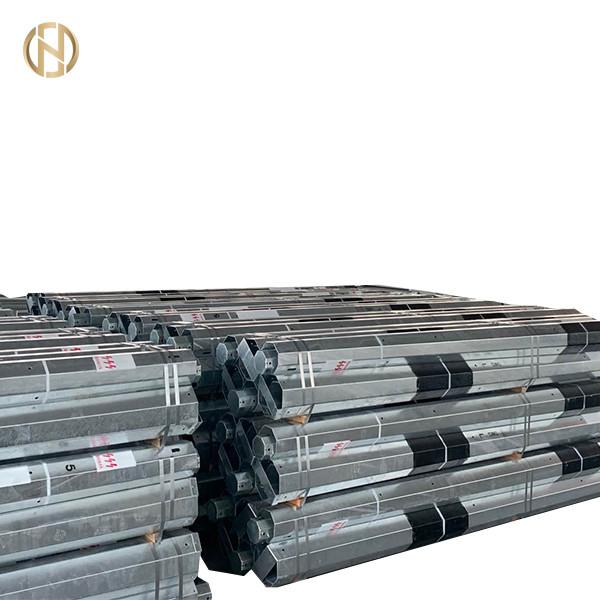

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
Our Service
1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
We are China Customized Size Metal Power Pole , 69KV 90FT Steel Electric Pole Q460C manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
