Customized Cable Pulling Pulley Block Nylon Sheave Pulley 1-3 Sheave 1160mm Diameter

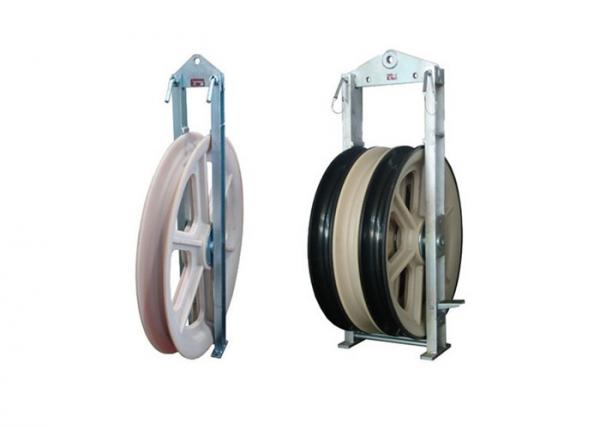

Customized Cable Pulling Pulley Block Nylon Sheave Pulley 1-3 Sheave 1160mm Diameter image
Brand Name :
shenhong
Model Number :
1160
Certification :
BV,CE,ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
10-15 days after deposit
Packaging Details :
export package
Application :
overhead line tranmisson
sheave width :
150mm
Sheave diameter :
1160mm
Surface treatment :
Galvanized
Material :
nylon wheel
Used :
stringing conductor
Customized Cable Pulley Block Nylon Sheave Pulley 1-3 Sheave 1160mm Diameter
This 1160mm Large Diameter Stringing Block has the conductor diameter of no more than LGJ1250. That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1250 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ1160×Φ1000× 150 (mm).
Explain
1.Maximum suitable conductor ACSR1250
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3.Sheave dimension for steel wire rope
(outside diameterx root diameter x sheave width) Φ1160×Φ1000×130(mm)
4.Strengthening type three sheave,cast steel sheave for middle sheave.
Specifications
Customized Cable Pulley Block Plastic Guide Pulley 1-3 Sheave 1160mm Diameter
| Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) | Feature |
| 10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
| 10168-2 | SHSQNK1160 | 3 | 120 | 220 |
Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
Detailed Images
Services
- Our Quality Assurance Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.
- Fast delivery time There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.
- Packaging Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.
- Application It is widely used in overhead power line construction.
We are China Customized Cable Pulling Pulley Block Nylon Sheave Pulley 1-3 Sheave 1160mm Diameter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
