CU Conductor 0.6KV 1KV Tunnel PVC Insulated Power Cable

CU Conductor 0.6KV 1KV Tunnel PVC Insulated Power Cable image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
ISO,CE,IEC,KEMA

Place of Origin :
China

MOQ :
1000meter

Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :
30000 Kilometer per Month

Delivery Time :
Seven days

Packaging Details :
Wooden drum

Model name :
1.5mm2~300mm2 PVC Insulated Cable

Conductor Type :
CU

Size :
1.5mm2~300mm2

Core no. :
5

Insulation color :
Customization

Sheath color :
Normaly Black or red or customization

No. of Cores :
Singel core

Rated Voltage :
0.6 / 1KV

Nominal section :
0~630 square mm

design standards :
IEC 60502-2, IEC 60228

0.6/1kw Tunnel PVC Insulated Power Cable

PVC insulated power cable

PVC (polyvinyl chloride) is widely used for insulation, coating and sheathing of cable structures. PVC is cost-effective and has excellent aging properties, usually exceeding a life span of 25 to 30 years.

Because PVC is easy to modify, it is considered to be one of the most versatile thermoplastics-although PVC is inherently hard and hard, it is easy to pass plasticizers, stabilizers, lubricants and various other auxiliary ingredients And fillers are modified and processed to enhance various properties. When used as a thermoplastic type, it is also easy to process and recycle.

Cables with PVC insulation or sheath are flame retardant, which is an important consideration for cables in most applications. PVC is resistant to many chemicals, including oils, acids, and alkalis, and is tough, durable, and wear-resistant. Adding various additives can improve its temperature range (usually -40 to 105°C), as well as its resistance to sunlight, reduce smoke and dust emissions and improve water resistance.

As an insulating material, cables can usually only choose between XLPE and PVC-between thermoplastic and thermoset materials. There are thermosetting PVC cross-links, which are usually cross-linked using electron beam technology, but are more expensive to use, so when specified, they are usually used in high-spec applications in industries such as defense and automotive. Thermosetting or cross-linked polyvinyl chloride has higher heat resistance, tougher and better dielectric strength, which means that thinner coatings or insulating layers can be applied, resulting in a smaller overall cable size.

Technical Parameters:

Cross Section	Conductor	Conductor Screen	Insulation	Insulation Screen	Metallic Screen	Inner Sheath	Armour	Screen Layer No.	Outer Sheath	Overall Diameter	Copper Cable	Aluminum Cable
mm2	mm	mm	mm	mm	mm	mm	mm		mm	mm	kg/km	kg/km
50	8.4	0.8	10.5	0.8	0.1	2.0	0.8	2	4	86	8906	7997
70	10	0.8	10.5	0.8	0.1	2.1	0.8	2	4	90	9944	8671
95	11.5	0.8	10.5	0.8	0.1	2.1	0.8	2	4	94	11112	9375
120	13	0.8	10.5	0.8	0.1	2.2	0.8	2	4	97	12253	10059
150	14.5	0.8	10.5	0.8	0.1	2.3	0.8	2	4	101	13557	10800
185	16.2	0.8	10.5	0.8	0.1	2.3	0.8	2	4	105	15059	11645
240	18.4	0.8	10.5	0.8	0.1	2.4	0.8	2	4	110	17249	12837
300	20.5	0.8	10.5	0.8	0.1	2.5	0.8	2	5	115	19603	14061
400	23.5	0.8	10.5	0.8	0.1	2.6	0.8	2	5	122	23151	15874
500	26.5	0.8	10.5	0.8	0.1	2.8	0.8	2	5	129	27045	17807

Application

PVC insulated power cables are suitable for transmission and distribution systems with a rated voltage of 0.6/1kV. For fixed installation in the open air, buried directly in the cable trough. Steel tape armored (STA) cables can withstand mechanical forces, but cannot withstand large tensile forces. Steel armored (SWA) cables can withstand mechanical and tensile forces.

We are China CU Conductor 0.6KV 1KV Tunnel PVC Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Similar Or Related

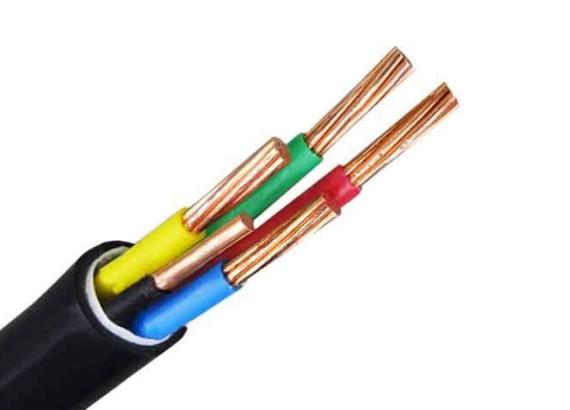

IEC 60228 2.5mm2 Wear Resistant PVC Insulated Cable
