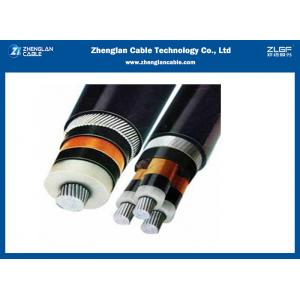

Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2

APPLICATIONS:

Medium-voltage power cables refer to power cables with a voltage of 3-35 kilovolts (KV),
which mainly have two voltage levels of 8.7/15KV and 26/35KV.
The medium voltage power cable can be divided into two types of copper core (YJV) and
aluminum core (YJLV) according to the conductor material. Its main specifications

STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)

Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.

Conductors

Either aluminium or copper conductors are used. Conductors will be circular, compacted & stranded and shall comply with IEC 60228 class 2.

Cross-sectional area: 16mm, 25mm, 35mm, 50mm, 95mm, 185mm, 240mm, 300mm and so on

Number of cores: 1 core, 3 core

Conductor: aluminum or copper

Bedding: Bonded or strippable out semi-conducting layer

Insulation: XLPE(Cross-linked Polyethylene)or EPR(thylene Propylene Rubber)

Armouring: 1. Galvanized steel wires/steel tape for 3 core; 2. Aluminium wire/tape for single core

Outer Sheath: PVC(Polyvinyl chloride)

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2 ​reference technical parameters

Three core 6/10kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 14.3 1.6 41 2400 1900
35 7.10 3.4 0.1 16 15.3 1.6 43 2800 2200
50 8.25 3.4 0.1 16 16.5 1.7 46 3400 2500
70 9.90 3. 4 0.1 16 18.1 1.7 50 4200 2900
95 11.7 3.4 0.1 16 19.9 1.8 54 5300 3400
120 13.3 3.4 0.1 16 21.3 1.8 57 6200 3900
150 14.3 3.4 0.1 25 22.5 1.9 60 7200 4400
185 16.3 3.4 0.1 25 24.5 1.9 64 8600 5100
240 18.7 3.4 0.1 25 26.9 2.0 70 10700 6100
300 20.9 3.4 0.1 25 29.1 2.1 75 12900 7100
400 23.7 3.4 0.1 25 31.9 2.2 81 15900 8500

Three core 8.7/15kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 4.5 0.1 16 16.5 1.7 46 3500 2400
35 7.10 4.5 0.1 16 17.5 17 48 3800 2600
50 8.25 4.5 0.1 16 18.7 1.7 51 4400 3000
70 9.90 4.5 0.1 16 20.3 1.8 55 4200 2900
95 11.7 4.5 0.1 16 22.1 1.8 59 5300 3400
120 13.1 4.5 0.1 16 23.5 1.8 62 6400 4000
150 14.3 4.5 0.1 25 24.7 1.9 65 7400 4500
185 16.3 4.5 0.1 25 26.7 1.9 69 10000 5800
240 18.7 4.5 0.1 25 29.1 2.0 75 12200 6800
300 20.9 4.5 0.1 25 31.3 2.1 80 14400 7900
400 23.7 4.5 0.1 35 34.1 2.2 87 17500 9300
