CU 5C FRC LSZH Power Cable Five Core Stranded Class 2

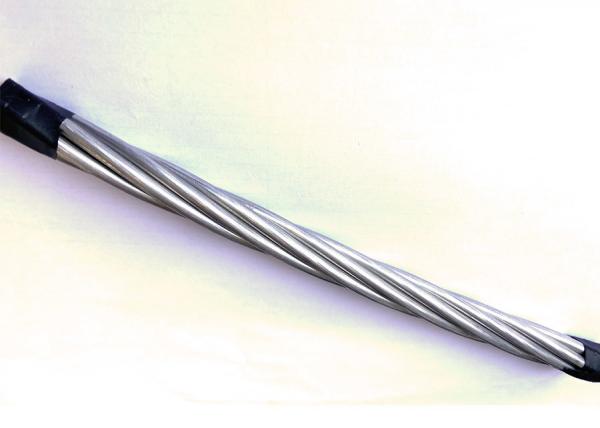

CU 5C FRC LSZH Power Cable Five Core Stranded Class 2 image
Brand Name :
SHANCABLE
Model Number :
FRC CABLE 0.6/1kV
Certification :
KEMA,ISO,CE,IEC,PICC
Place of Origin :
SHANGHAI, CHINA
MOQ :
1000meter
Price :
US$2~110per meter
Payment Terms :
L/C, D/A
Supply Ability :
30 Kilometer/Month
Delivery Time :
7-15 days
Packaging Details :
Wooden drum
Model name :
5C FRC Cable
Conductor Type :
Stranded Class 2
Size :
1.5-800mm2
Core no. :
Five
Warranty :
2 years
Free Sample :
Avaliable
CU/XLPE/PVC 0.6/1kV Fire Retardant LSZH Power Cable For Buidings
Applications:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting. High voltage xlpe cable is used to be laid indoors, in tunnel, cable furrow or pipe, this cable couldn’t bear mechanical force outside. Laying single core cable in magnetic duct not permissible.
Standards:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Technical parameter
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 5×2.5 | 0.8 | 1.8 | 13.6 | 7.41 | 3.5 |
| 5×4 | 1.0 | 1.8 | 16.1 | 4.61 | 3.5 |
| 5×6 | 1.0 | 1.8 | 17.7 | 3.08 | 3.5 |
| 5×10 | 1.0 | 1.8 | 21.0 | 1.83 | 3.5 |
| 5×16 | 1.0 | 1.8 | 23.8 | 1.15 | 3.5 |
| 5×25 | 1.2 | 1.8 | 28.7 | 0.73 | 3.5 |
| 5×35 | 1.2 | 1.9 | 32.0 | 0.524 | 3.5 |
| 5×50 | 1.4 | 2.1 | 37.4 | 0.387 | 3.5 |
| 5×70 | 1.4 | 2.2 | 41.7 | 0.268 | 3.5 |
| 5×95 | 1.6 | 2.4 | 48.1 | 0.193 | 3.5 |
| 5×120 | 1.6 | 2.5 | 53.0 | 0.153 | 3.5 |
| 5×150 | 1.8 | 2.7 | 58.6 | 0.124 | 3.5 |
| 5×185 | 2.0 | 2.9 | 65.1 | 0.0991 | 3.5 |
| 5×240 | 2.2 | 3.1 | 72.1 | 0.0754 | 3.5 |
| 5×300 | 2.4 | 3.4 | 80.1 | 0.060 | 3.5 |
| 5×400 | 2.6 | 3.6 | 87.0 | 0.0470 | 3.5 |
Main Properties
| No. | Test Item | Property | ||
| 1 | Construction | Listed to the tables | ||
| 2 | Conductor resistance | Listed to the tables | ||
| 3 | Test Voltage | A.C 3.5kV 5min | No breaken | |
| 4 | Machenical Properties before aging | Tensile Strength | Insulation | Min. 12.5N/mm2 |
| Sheath | Min. 12.5N/mm2 | |||
| Elongation at break | Insulation | Min. 150% | ||
| Sheath | Min. 150% | |||
| Machenical properties after aging | Tensile Strength | Insulation | 100℃±2℃7days Min. 12.5N/mm2 | |
| Sheath | 100℃±2℃7days Min. 12.5N/mm2 | |||
| Varying valve of tensile strength | Insulation | 100℃±2℃7days Max. 25% | ||
| Sheath | 100℃±2℃7days Max. 25% | |||
| Elongation at break | Insulation | 100℃±2℃7days Min.150% | ||
| Sheath | 100℃±2℃7days Min.150% | |||
| Varying valve of tensile strength | Insulation | 100℃±2℃7days Max. 25% | ||
| Sheath | 100℃±2℃7days Max. 25% | |||
| 5 | Flame retardant property | IEC60332 – 3 | ||
| 6 | Constant of insulation resistivity | Min at 20℃ | 36.7 | |
| Ki MΩ.km | Min at 70℃ | 0.037 | ||
Working conditions:
1) This maximum working temperature of the conductor is 70°C.
2) During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor for shall not be above 160°C.
3) Environment temperature should be no lower than 0°C for laying the cable;
4) Bending radius allowance of the cable;
single core cable: no steel tape cable 20D: steel tape cable 15D.
3 core cable: no steel tape cable 15D; steel tape cable 12D.
