Cross Linked Polyethylene 1 Core 69KV Armoured Power Cables

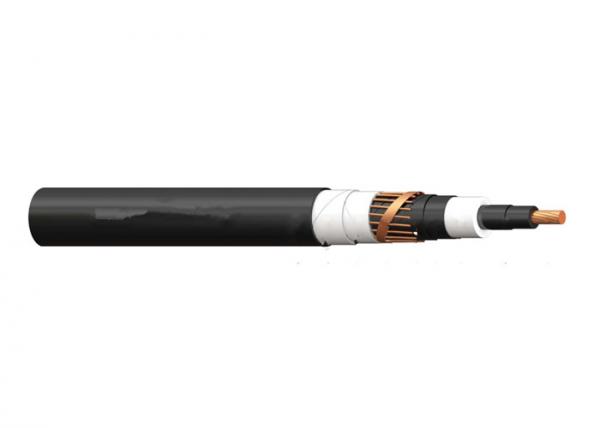

Cross Linked Polyethylene 1 Core 69KV Armoured Power Cables image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Price :
Negotiable
Packaging Details :
wooden drum
Delivery Time :
5-15day
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Application :
Construction,Industrial,power station or construction
Product name :
copper armoured power cable
Core :
1 core
Conductor type :
Stranded
certification :
CE
model :
HV CABLE
Cross linked Polyethylene 1 Core 69KV Armoured Power Cables
Application:
Preferably laid in substations, factories and urban area. the cable shall be suitable for use in ducts, trays and direct burial in ground. subjected to immerse in water all time
Construction:
1. Conductor : Circular compact stranded annealed copper
2. Conductor screen : Semi-conductive tape with extruded Semi-conductive cross-linked
polyethylene compound
3. Insulation : Cross-linked polyethylene (XLPE) compound
4. Insulation screen : Semi-conductive cross-linked polyethylene compound
5. Water blocking tape : Semi-conductive water blocking tape
6. Metallic screen : Copper wires with copper contact tape
7. Water blocking and Cushioning tape : Non-conductive water blocking tape
8. Radial water barrier : Copolymer aluminum tape
9. Sheath : Black Polyethylene (PE) , (Optional : with RIB)
| conductor | Nominal conductor screen thickness | Nominal insulated thickness | Nominal insulated screen thickness | Area of metalic screen | Nominal sheath thickness | Approx. overall dia. | conductor resistance at 20℃(Max.) | Capacitance | current rating direct burial in ground at 30 ℃ |
Approx. cable weight
|
|
| cross-sectional area | Min.No. of wire | ||||||||||
| mm² | / | mm | mm | mm | mm² | mm | mm | Ω/km | µF/km | A | kg/km |
| 400 | 53 | 1.5 | 11.0 | 1.5 | 120 | 3.5 | 68 | 0.0470 | 0.222 | 680 | 7280 |
| 500 | 53 | 1.5 | 11.0 | 1.5 | 120 |
3.5 |
71 | 0.0366 | 0.246 | 775 | 8520 |
| 630 | 53 | 1.5 | 11.0 | 1.5 | 120 | 3.5 | 75 | 0.0283 | 0.269 | 885 | 10050 |
| 800 | 53 | 1.5 | 11.0 | 1.5 | 120 | 3.5 | 79 | 0.0221 | 0.292 | 995 | 11900 |
Packing & Shipping
Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.
Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.
Our Services
- Product consultation, analysis, design, production
- Provide industry information, Product Training, Assist Product Marketing
- Provide project support such as tender assistant, cooperate visit customers, FAT support.
- Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
- OEM service
- Other service customized by clients
We are China Cross Linked Polyethylene 1 Core 69KV Armoured Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
