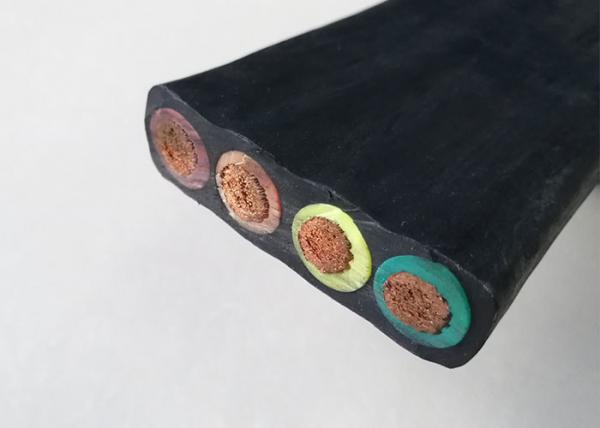

Cranes 600V 4 Core Flexible Flat Mining Rubber Sheath Cable
Cranes 600V 4 Core Flexible Flat Mining Rubber Sheath Cable image
600V SHD W 4 Core Rubber Sheath Flexible Flat Mining Travel Pendant Copper Cables For Cranes
Application
Flat cables are used for the power connection and control signal lighting of various mobile power devices in the lifting, transportation, machinery, electrical, mining, and other industries with working voltage 450/750V and below and ambient temperature of -40~70℃.
Cable performance
High flexibility, high wear resistance, bending resistance, oil resistance, acid/alkali resistance, low temperature resistance, tensile strength. Can be customized according to the customer's specific use environment.
Installation performance
Temperature range: mobile installation: -15℃~+70℃
Fixed installation: -20℃~+70℃
The special cold-resistant flexible sheath can maintain softness at a low temperature of -15℃
Technical parameter
| No. | Description | Material | Dimension |
| 1 | Phase conductor | Annealed copper wire, class5 | / |
| 2 | Conductor cores | copper | 4 cores |
| 3 | Conductor cross sectional area | 53.3mm2 | |
| 4 | Number of conductors | 271/0.5 No./mm | |
| 5 | Insulation | PVC elastomer | 1.6mm |
| 6 | Outer sheath | PVC elastomer | 2.0×2.4×1.5mm |
| 7 | Approx. Cable dia. | / | 68.7x19.6mm |
| 8 | Cable weight per meter | / | 10.1kg |
Packing
We are China Cranes 600V 4 Core Flexible Flat Mining Rubber Sheath Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
