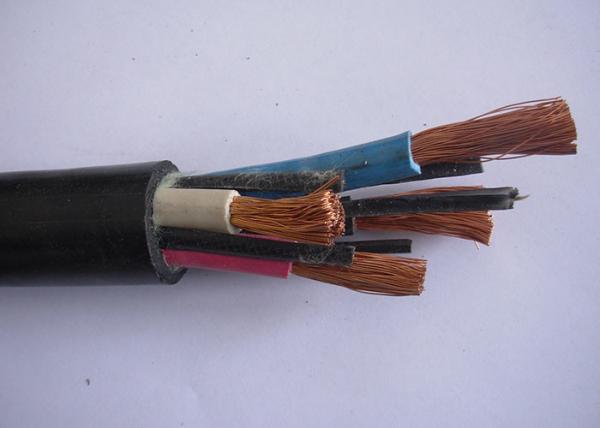

Cpe Sheath Rubber Mining Cable / EPR Insulated Cable Flame Retardant

TYPE MP-GC EPR INSULATED CPE SHEATH RUBBER MINING CABLE 5-25 kV 4AWG TO 500MCM

APPLICATIONS

Suitable for use as follows:
• Use in stationary horizontal HV mine power distribution circuits, for permanent or
semi-portable applications with power transmission in deep mines, surface mines,
open pits, tunnels, in conduit or duct (not to exceed max rated voltage), suitable for
direct burial in wet or dry locations (max. conductor operating temp. in open-air 90°C).
For vertical drop requirements consult with factory application specialist.

CONSTRUCTION

• Conductors: Bare, soft drawn, annealed copper per ASTM B-3, compact stranded
per ASTM B-496.
• Strand Shield: Extruded semi-conducting compound.
• Insulation: HV grade, flame resistant, thermosetting (90°C) Ethylene Propylene
Rubber (EPR) 100% insulation, ozone, oil, water, solvent, corrosive and abrasion
resistant, per ICEA S-75-381/NEMA WC-58.
• Insulation Shield: Extruded semi-conducting compound, bare copper tape
helically applied.
• Color Code: Black, White, Red via colored nylon tracer tape, applied between the
insulation semi-conductive layer and the copper tape shield.
• Ground Wires: Uninsulated, soft drawn, annealed, stranded bare copper per ASTM
B-496, B-8 and B-33.
• Ground Check: Soft drawn, annealed, compact stranded, bare copper with a yellow
EPR insulation.
• Cabling: Three shielded conductors are assembled round in a helical configuration
with two uninsulated ground wires, one yellow insulated ground check and non-wicking
fillers as needed. A woven nylon polyester reinforcement binder is served over the
entire assembly. An additional woven reinforcement layer is served over the entire
completed assembly for increased stability.
• Reinforcement: A woven nylon polyester reinforcement binder is applied over the
completed assembly for added core to jacket integrity.
• Jacket: Mold cured, heavy-duty, single layer flame resistant, thermosetting
Chlorinated Polyethylene (CPE). Available in alternate colors and reflective stripes.

STANDARDS AND REFERENCES

• Meets or exceeds ICEA S-75-381/NEMA WC58 ASTM B-496, B-8 and B-3

• Meets Safty Certificate of Approval for Mining Products

BENEFITS

• Excellent resistance to UV, ozone, aging, oil, water, solvent, corrositears and abrasions
• Jacket will have permanent marking via embossed printed legend

MEASUREMENTS

POWER CONDUCTORS			GROUNDING CONDS.		GROUND CHECK	NOM. O.D.	AMPACITY 40°C AMBIENT TEM
SIZE	STRANDS	INSULATION	SIZE	STRANDS
5KV
4	7	2.3	8	7	8	33.53	122
2	7	2.3	6	7	8	36.83	159
1	19	2.3	5	7	8	38.86	184
1/0	19	2.3	4	7	8	41.40	211
2/0	19	2.3	3	7	8	44.20	243
4/0	19	2.3	1	19	8	50.80	321
250	37	2.3	1/0	19	8	54.10	355
350	37	2.3	2/0	19	8	59.69	435
500	37	2.3	4/0	19	8	67.06	536
8KV
4	7	3.0	8	7	8	36.32	122
2	7	3.0	6	7	8	39.37	159
1	19	3.0	5	7	8	41.91	184
1/0	19	3.0	4	7	8	44.45	211
2/0	19	3.0	3	7	8	47.75	243
4/0	19	3.0	1	19	8	53.85	321
250	37	3.0	1/0	19	8	57.15	355
350	37	3.0	2/0	19	8	62.48	435
500	37	3.0	4/0	19	8	69.85	536
15KV
2	7	4.45	6	7	8	47.75	159
1	19	4.45	5	7	8	50.29	184
1/0	19	4.45	4	7	8	52.07	211
2/0	19	4.45	3	7	8	54.61	243
4/0	19	4.45	1	19	8	60.96	321
250	37	4.45	1/0	19	8	63.50	355
350	37	4.45	2/0	19	8	69.85	435
500	37	4.45	4/0	19	8	78.74	536
25KV
2	7	6.6	6	7	8	59.44	159
1	19	6.6	5	7	8	61.47	184
1/0	19	6.6	4	7	8	63.75	211
2/0	19	6.6	3	7	8	66.04	243
4/0	19	6.6	1	19	8	73.41	321
250	37	6.6	1/0	19	8	75.95	355
350	37	6.6	2/0	19	<span style="font-family:arial,hel We are China Cpe Sheath Rubber Mining Cable / EPR Insulated Cable Flame Retardant manufacture and supplier,You can get more details with Email,you will get cheap price or factory price. Tags: Copper Conductor Cable, Mining Cable, xlpe copper cable Similar Or Related SHD-GC 8kV Copper Conductor Cable EPR Insulated CPE Sheathed 4AWG For Underground Mining Yifang Mining Cable 8KV Tinned Copper EPR Insulation CPE Jacket 3x4AWG 3x2AWG One Core Three Core Copper Conductor Cable XLPE / PVC Insulation Ground Check 8kV Underground Mining Cable EPR Insulated CPE Sheathed SHD-GC Quick Contact If you have any questions or would like to book a session please contact us. FAST AND RELIABLE SERVICE FOR YOUR PROJECT Contact our trained experts today to find your perfect power solution. ASK A QUESTION An integrated cable and wire solution provider,for the transmission and distribution of electricity that connect the world. Our Products Aluminium Conductor Aerial Bundled Cable Service Drop Cable Low Voltage Power Cable Medium Voltage Power Cable Quick Links Home About Products Other Cable Contact Get In Touch Galaxy Electric Zhongyuan District, Xinxiang City Henan Province, China. Email:[email protected] © 2020 Galaxy Electric Country Code Sitemap Cable Cable Drum
