Corrosion Resistant Black PVC Insulated / Shielded Control Cable For Being Laid Indoors

Corrosion Resistant Black PVC Insulated / Shielded Control Cable For Being Laid Indoors image

Get a Quote Email to us

Brand Name :
SHAN CABLE

Model Number :
KVV

Certification :
CE/KEMA/CCC/CE

Place of Origin :
SHANGHAI CHINA

MOQ :
1000m

Price :
USD 0.4 To 10.5 per Meter

Supply Ability :
8KM per Day

Delivery Time :
10-15 Days

Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums

Conductor :
Copper

Insulation :
PVC

Sheath :
PVC

Color :
Black

Core :
2 to 61

Place :
China

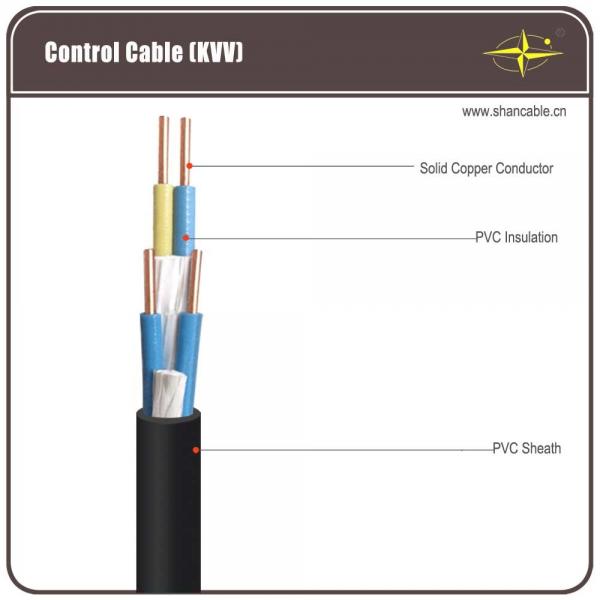

Copper Conductor PVC Insulated Control Cables WIth PVC Outer Sheath

Construction:

Conductor: Class 1&2 Copper Conductor

Insualtion: PVC

Sheath: PVC

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place

Specifications:

Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	Overall Diameter		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
4×0.5	0.6	1.2	7.3	9.2	0.013	39
4×0.75	0.6	1.2	7.6	9.6	0.011	26
4×1.0	0.6	1.2	8	10	0.01	19.5
4×1.5	0.7	1.2	9	11.3	0.01	13.3
4×2.5	0.8	1.2	10.5	13.1	0.009	7.98
5×0.75	0.6	1.2	7.9	9.9	0.013	26
5×1.0	0.6	1.2	8.3	10.3	0.011	19.5
5×1.5	0.7	1.2	9.8	12.2	0.01	13.3
5×2.5	0.8	1.5	11.5	14.3	0.009	7.98
7×0.5	0.6	1.2	8.5	10.6	0.013	39
7×0.75	0.6	1.2	8.9	11.1	0.011	26
7×1.0	0.6	1.2	9.3	11.7	0.01	19.5
7×1.5	0.7	1.2	10.6	13.2	0.01	13.3
7×2.5	0.8	1.5	13.1	16.2	0.009	7.98

FAQ

Q1. Can I have a sample order for cable?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production needs 2-3 weeks .

Q3. Do you have any MOQ limit for cable?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for yolarlink cable?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

We are China Corrosion Resistant Black PVC Insulated / Shielded Control Cable For Being Laid Indoors manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
