Standard of AACSR condu
ctor
ASTM B711, IEC 61089, AS 3607, GB/T 1179

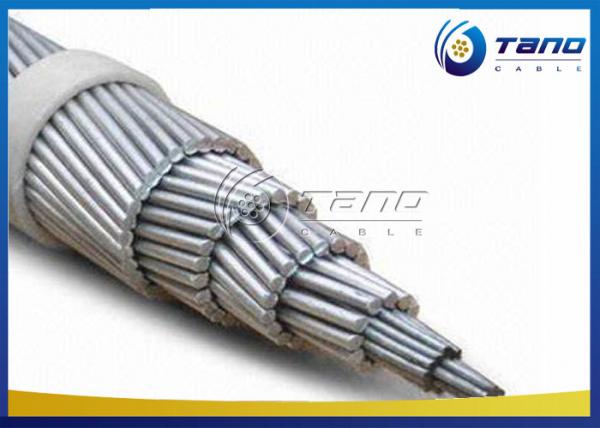

Construction of AACSR conductor
AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
Core wire for AACSR is available with Class A, B or C galvanizing; "aluminized" aluminum coated (AZ): or aluminum clad (AW).
Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
Construction Parameters
Standard sizes to GB/T 1179—2008
| Nominal section aluminum alloy/steel |
Areas/mm2 |
Stranding Number & Wire Diameter |
Diameter/mm |
Linear. mass/ (kg/km) |
D.C resistance (20 V)/ (O/km) |
| Alum |
Steel |
Total |
Al |
St |
Core |
Cond |
| 10/2 |
10. 60 |
1. 77 |
12.37 |
6/1. 50 |
1/1. 50 |
1. 50 |
4. 50 |
42.8 |
3.144 4 |
| 16/3 |
16. 13 |
2. 69 |
18.82 |
6/1. 85 |
1/1.85 |
1.85 |
5. 55 |
65.1 |
2.067 1 |
| 25/4 |
25.36 |
4. 23 |
29.59 |
6/2. 32 |
1/2. 32 |
2. 32 |
6. 96 |
102.4 |
1.314 4 |
| 35/6 |
34. 86 |
5. 81 |
40.67 |
6/2.72 |
1/2.72 |
2.72 |
8. 16 |
140.8 |
0. 956 3 |
| 50/8 |
48.25 |
8. 04 |
56.3 |
6/3.2 |
1/3.2 |
3.2 |
9. 60 |
194.8 |
0. 690 9 |
| 50/30 |
50.73 |
29.59 |
80.32 |
12/2. 32 |
7/2.32 |
6.96 |
11.6 |
371. 1 |
0. 661 4 |
| 70/10 |
68. 05 |
11.34 |
79.39 |
6/3. 80 |
1/3.8 |
3.8 |
11.4 |
274.8 |
0.489 9 |
| 70/40 |
69. 73 |
40. 67 |
110.4 |
12/2.72 |
7/2.72 |
8. 16 |
13. 6 |
510.2 |
0.481 2 |
| 95/15 |
94. 39 |
15.33 |
109. 73 |
26/2. 15 |
7/1.67 |
5.01 |
13. 6 |
380.2 |
0. 355 4 |
| 95/55 |
96. 51 |
56.3 |
152.81 |
12/3. 20 |
7/3. 20 |
9.6 |
16 |
706. 1 |
0.347 7 |
| 120/7 |
118.89 |
6. 61 |
125. 50 |
18/2. 90 |
1/2. 90 |
8. 70 |
14. 5 |
378.5 |
0.281 5 |
| 120/20 |
115. 67 |
18.82 |
134.49 |
26/2. 38 |
7/1.85 |
5. 55 |
15. 1 |
466.1 |
0. 290 0 |
| 120/70 |
122. 15 |
71.25 |
193.4 |
12/3. 60 |
7/3. 60 |
10.8 |
18 |
893.7 |
0.274 7 |
| 150/8 |
144.76 |
8. 04 |
152.81 |
18/3.2 |
1/3.2 |
3. 20 |
16 |
460.9 |
0.231 2 |
| 150/25 |
148.86 |
24.25 |
173.11 |
26/2. 70 |
7/2.1 |
6.3 |
17.1 |
600.1 |
0.225 4 |
| 185/10 |
183.22 |
10.18 |
193.4 |
18/3.6 |
1/3.6 |
3. 60 |
18 |
583. 3 |
0. 182 6 |
| 210/10 |
204.14 |
11. 34 |
215.48 |
18/3.8 |
1/3.8 |
3. 80 |
19 |
649. 9 |
0. 163 9 |
| 210/35 |
211.73 |
34.36 |
246.09 |
26/3. 22 |
7/2.5 |
7.5 |
20.4 |
852.5 |
0. 158 5 |
| 240/30 |
244. 29 |
31.67 |
275. 96 |
24/3. 60 |
7/2.4 |
7.2 |
21.6 |
920.7 |
0. 137 2 |
| 240/40 |
238.84 |
38. 90 |
277.74 |
26/3. 42 |
7/2. 66 |
7. 98 |
21.7 |
962.8 |
0. 140 5 |
| 300/20 |
303.42 |
20.91 |
324. 32 |
45/2. 93 |
7/1. 95 |
5.85 |
23.4 |
1 000.8 |
0. 110 6 |
| 300/50 |
299.54 |
48.82 |
348.37 |
26/3.83 |
7/2.98 |
8. 94 |
24.3 |
1 207.7 |
0.112 0 |
| 300/70 |
305.36 |
71.25 |
376.61 |
30/3. 60 |
7/3. 60 |
10.8 |
25.2 |
1 399. 6 |
0. 109 9 |
| 400/25 |
391.91 |
27.1 |
419.01 |
45/3.33 |
7/2.22 |
6. 66 |
26. 6 |
1 293. 5 |
0.085 7 |
| 400/50 |
399.72 |
51.82 |
451. 54 |
54/3.07 |
7/3.07 |
9. 21 |
27.6 |
1 509.3 |
0. 084 1 |
| 400/95 |
407.75 |
93.27 |
501.02 |
30/4. 16 |
19/2.5 |
12.5 |
29. 1 |
1 856. 7 |
0.082 3 |
| 500/35 |
497.01 |
34.36 |
531. 37 |
45/3. 75 |
7/2.5 |
7.5 |
30. 0 |
1 640. 3 |
0.067 5 |
| 500/65 |
501. 88 |
65.06 |
566.94 |
54/3.44 |
7/3.44 |
10.3 |
31 |
1 895.0 |
0.067 0 |
| 630/45 |
623.45 |
43. 10 |
666. 55 |
45/4.2 |
7/2. 80 |
8.4 |
33. 6 |
2 057.6 |
0.053 8 |
| 630/80 |
635. 19 |
80.32 |
715.51 |
54/3. 87 |
19/2.32 |
11.6 |
34.8 |
2 384. 7 |
0. 052 9 |
| 800/55 |
814. 30 |
56.3 |
870. 60 |
45/4. 80 |
7/3.2 |
9. 60 |
38.4 |
2 687. 5 |
0.041 2 |
| 800/100 |
795. 17 |
100.88 |
896.05 |
54/4. 33 |
19/2. 60 |
13 |
39 |
2 987.8 |
0.042 3 |
| 1000/45 |
1 002.27 |
43.1 |
1 045.38 |
72/4. 21 |
7/2.8 |
8.4 |
42. 1 |
3 106. 8 |
0.033 5 |
| 1000/125 |
993. 51 |
125. 50 |
1 119.01 |
54/4. 84 |
19/2. 90 |
14.5 |
43.5 |
3 728. 9 |
0.033 8 |
Packing&Shipping of AACSR conductor
Details :
1) Packing length:100 to 1,000m reeled in carton drum or according to customers'requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to customer's request.
