Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity

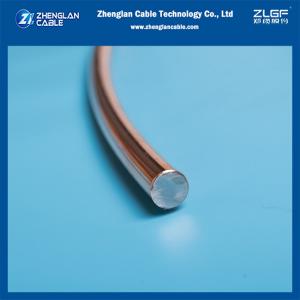

Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity image
Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity Product Description:
Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity STANDARDS :
ASTM B193 – Standard Test Method for Resistivity of Electrical Conductor Materials
ASTM B227 – Standard Specification for Hard-Drawn Copperclad Steel Wire
ASTM B228 – Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors
ASTM B258 – Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round
ASTM B910 – Standard Specification for Annealed Copperclad Steel Wire
Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity Technical Parameters:
| CONDUCTOR SIZE |
STRANDS | OVERALL DIAMETER |
AREA | MIN. BREAKING LOAD |
WEIGHT | NOM. DC RESISTANCE |
|||
| AWG | IN. | MM | CMIL | (MM^2) | LBF | KGF | KG/KM | Ω/KM | |
| #6 AWG | 1 | 0.162 | 4.12 | 26,250 | 13.3 | 2360 | 1071 | 109 | 3.2382 |
APPLICATIONS:
Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire.it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft.
Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity Image:
Support and Services:
Copper Clad Steel technical support and services include:
- Providing product information and technical support.
- Assistance with product selection.
- Guidance with product installation and maintenance.
- Providing product training.
- Safety inspections and testing.
- Repair and replacement services.
- Warranty services.
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
We are China Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
