Copper XLPE Insulated Power Cable
Copper XLPE Insulated Power Cable image
Description:
6/10kv XLPE Insulated cables
CU/XLPE/ PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO
Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 25 | 7/2.14 | 3.4 | 2 | 20.0 | 598 | 0.727 | 21 | 140 | 150 |
| 1 × 35 | 7/2.52 | 3.4 | 2 | 22.0 | 719 | 0.524 | 21 | 175 | 180 |
| 1 × 50 | 10/2.52 | 3.4 | 2 | 23.0 | 884 | 0.387 | 21 | 205 | 215 |
| 1 × 70 | 14/2.52 | 3.4 | 2 | 24.0 | 1097 | 0.268 | 21 | 260 | 265 |
| 1 × 95 | 19/2.52 | 3.4 | 2 | 26.0 | 1378 | 0.193 | 21 | 315 | 315 |
| 1 × 120 | 24/2.52 | 3.4 | 2 | 28.0 | 1658 | 0.153 | 21 | 365 | 360 |
| 1 × 150 | 30/2.52 | 3.4 | 2 | 30.0 | 1967 | 0.124 | 21 | 415 | 405 |
| 1 × 185 | 37/2.52 | 3.4 | 2 | 31.0 | 2335 | 0.0991 | 21 | 475 | 455 |
| 1 × 240 | 48/2.52 | 3.4 | 2 | 34.0 | 2908 | 0.0754 | 21 | 565 | 530 |
| 1 × 300 | 61/2.52 | 3.4 | 2 | 36.0 | 3507 | 0.0601 | 21 | 645 | 595 |
| 1 × 400 | 61/2.97 | 3.4 | 2.5 | 39.0 | 4503 | 0.0470 | 21 | 750 | 680 |
| 1 × 500 | 61/3.23 | 3.4 | 2.5 | 42.0 | 5479 | 0.0366 | 21 | 865 | 765 |
| 1 × 630 | 61/3.50 | 3.4 | 2.5 | 48.0 | 6952 | 0.0283 | 21 | 990 | 860 |
| 1 × 800 | 91/3.20 | 3.4 | 2.6 | 52.0 | 7120 | 0.0221 | 21 | 1140 | 950 |
| 1 × 1000 | 91/3.75 | 3.4 | 2.8 | 57.0 | 10500 | 0.0176 | 21 | 1250 | 1040 |
| 3 × 25 | 7/2.14 | 3.4 | 2.3 | 41.0 | 895 | 0.727 | 21 | 120 | 125 |
| 3 × 35 | 7/2.52 | 3.4 | 2.4 | 44.0 | 2293 | 0.524 | 21 | 145 | 155 |
| 3 × 50 | 10/2.52 | 3.4 | 2.5 | 46.0 | 2812 | 0.387 | 21 | 175 | 180 |
| 3 × 70 | 14/2.52 | 3.4 | 2.6 | 50.0 | 3508 | 0.268 | 21 | 220 | 220 |
| 3 × 95 | 19/2.52 | 3.4 | 2.7 | 53.0 | 4402 | 0.193 | 21 | 265 | 265 |
| 3 × 120 | 24/2.52 | 3.4 | 2.8 | 56.0 | 5319 | 0.153 | 21 | 305 | 300 |
| 3 × 150 | 30/2.52 | 3.4 | 2.9 | 59.0 | 6309 | 0.124 | 21 | 350 | 340 |
| 3 × 185 | 37/2.52 | 3.4 | 3.0 | 62.0 | 7319 | 0.0991 | 21 | 395 | 380 |
| 3 × 240 | 48/2.52 | 3.4 | 3.2 | 68.0 | 9218 | 0.0754 | 21 | 470 | 435 |
| 3 × 300 | 61/2.52 | 3.4 | 3.4 | 72.0 | 11159 | 0.0601 | 21 | 535 | 485 |
| 3 × 400 | 61/2.97 | 3.4 | 3.6 | 81.0 | 15107 | 0.0470 | 21 | 610 | 520 |
The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
We are China Copper XLPE Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

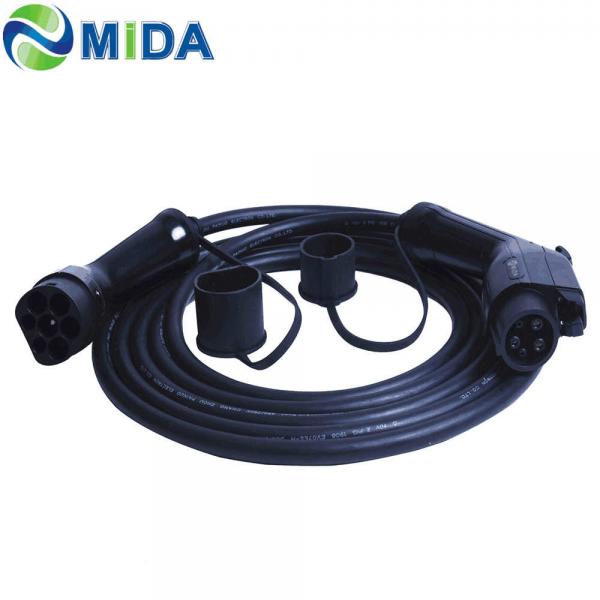

Tags: 32Amp Ev Charging Cable, 32Amp type 1 to type 2 cable, TUV type 1 to type 2 cable, XLPE Insulated Power CableSimilar Or Related
