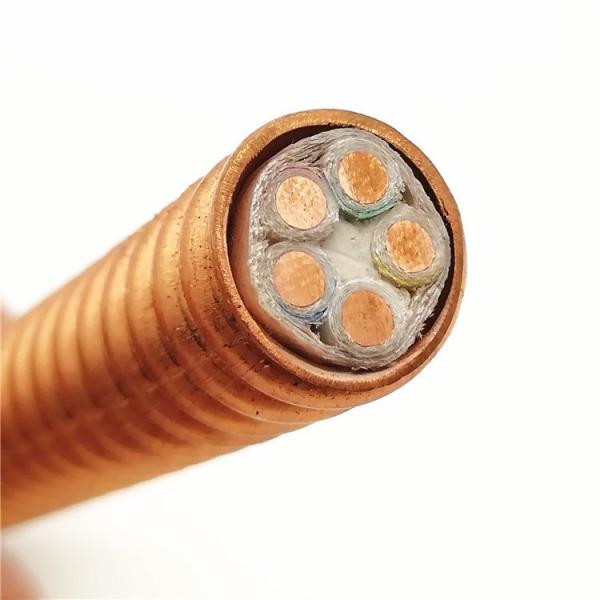

Copper Sheath Mineral Insulated Cable

Copper Sheath Mineral Insulated Cable image

Get a Quote Email to us

MOQ :
100m

Price :
USD 0.87-2.66/M

Payment Terms :
L/C, T/T

Delivery Time :
7 Days after received deposit

Packaging Details :
Wooden drum

Product name :
Mineral Insulated Cable

Insulation Material :
PVC

Conductor Material :
Copper

Outer Jacket :
Clean & Smooth PVC

Type :
Insulated

Number of Conductors :
Multicore

Brand Name :
HOLD-ONE

MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable

Description

Mineral insulated cables (MI or MICC cable) are made of copper conductor inside a copper sheath, insulated by compressed powdered magnesium oxide that used for fire survival system.

The mineral fillings in MI cables provide excellent non-reactive insulation, preventing the thermocouple wires from contact with each other or with caustic substances such as oils, solvents or water. This helps to ensure that the thermocouple probes remain accurate, critical in applications such as heat treating or sintering where the quality of the product could be adversely affected by temperature fluctuations.

Advantages of Mineral Insulated Cables

Since all the materials of this cable are inorganic, it has some advantages that other cables cannot have, such as, fire prevention, high current carrying capacity, resistance to mechanical damage, non-toxic, non-halogen, explosion-proof, waterproof, corrosion resistance, long life, safety, overload resistance, high temperature resistance, low cost, small bending radius, anti-ant, anti-rat bite, copper sheath used as a protective grounding wire and so on.

Application

Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.

Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards: such as BS, DIN and ICEA, design & manufacture special power cable according to customer’s special request.

PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.

We are China Copper Sheath Mineral Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
