Copper Core Steel Tape Armoured Electrical Cable LV XLPE PVC Insulation Underground STA Cable 0.6/1kV

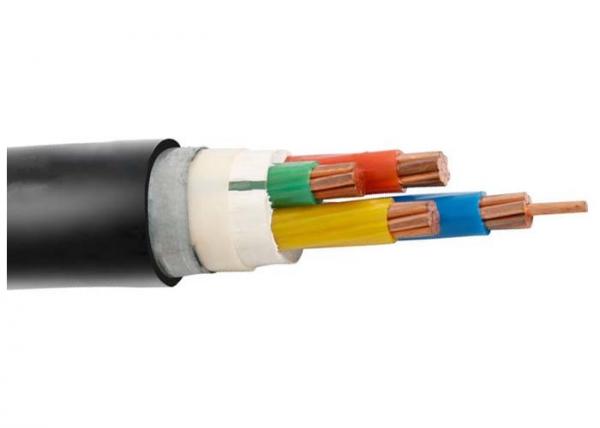

Copper Core Steel Tape Armoured Electrical Cable LV XLPE PVC Insulation Underground STA Cable 0.6/1kV image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
CU/XLPE/PVC/STA/PVC

Certification :
ISO,CE,IEC,TUV,KEMA

Place of Origin :
Shanghai, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
100KM/Week

Delivery Time :
10 Days

Packaging Details :
Wooden Drum

Product name :
STA LV Cable

Insulation :
XLPE/PVC

Conductor :
CU/AL

Armour :
STA

Sizes :
1.0 to 630 sqmm

Cores :
1 – 5

Sheath :
PVC

Free sample :
Yes

Copper Core Steel Tape Armoured LV Cable XLPE PVC Insulation Underground STA Cable 0.6/1kV

Cable details

1.U0/U: 0.6/1kV

2.Standard: IEC60502, BS7870, GB/T12706

3.Max. working temperature: 90 °C , can be 110 °C as requirement

4.Conductor: Class 1/2 annealed bare copper/aluminum solid or strands

5.Insulation: XLPE/PVC

6.Armored: STA

7.Sheath: PVC

8. Cross section area: 1.5~630mm2

9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E

10. Packing:Wooden drum or as requirement

11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB

12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

Specifications

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500
YJV22 YJLV22	Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable	0.6/1KV	3	1.5 to 400	Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
		0.6/1KV	4	4 to 240
		6/6kV 8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	3	50 to 240

Applications

STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.

YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

22: Galvanized steel tape armoring

32: Galvanized steel wire armoring

pvc insulation
Cu Core	Al Core
VV(VY);PVC(PE)sheathed power cable	VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable	VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable	VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Standard

International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST₂ to IEC 60502, black

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.

We are China Copper Core Steel Tape Armoured Electrical Cable LV XLPE PVC Insulation Underground STA Cable 0.6/1kV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
