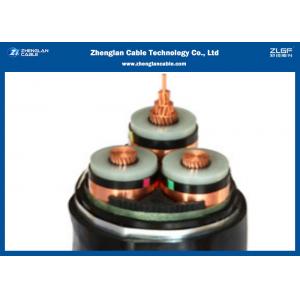

Copper core STA Armoured XLPE Insulated 35KV Medium Voltage Power Cables armoured power cable image

Get a Quote Email to us

Copper core STA Armoured XLPE Insulated 35KV Medium Voltage Power Cables armoured power cable

APPLICATIONS:

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD:
BS 6622
BS 7835 (LSZH Version)

Noted:Single Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276

Cable Construction

medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.

Conductors

Either aluminium or copper conductors are used. Conductors up to 630mm² will be circular, compacted & stranded and shall comply with IEC 60228 class 2. 630mm² conductor will be circular stranded type on which a layer of semi-conducting tape will be applied.

Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Inner Sheath (Bedding) for Armoured Cables

Extruded layer of PVC or PE is applied over the laid up cores for armoured cables. PVC is normally of grade ST2 and PE of grade ST7 as per IEC 60502 Part 2.

Armouring

In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:

a) Galvanized steel wire.

b) Galvanized steel tape.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

Copper core STA Armoured XLPE Insulated 35KV Medium Voltage Power Cables armoured power cable Cable Parameters:

Nominal Cross Section (mm2) Nominal Thickness of Insulation (mm) Size of Armor Approximate Overall Diameter and Weight Recommended Current Rating (A)
Fine Steel Wire Thick Steel Wire Cu/XLPE/PVC Cu/XLPE/PE Cu/XLPE/PVC/SWA/PVC Cu/XLPE/PVC/SWA/PE In Ground In Air
Diameter (mm) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km) Overall Diameter (mm) Weight (kg/km)
50 8 2.0 4.0 32.2 1350 32.2 1266 39.2 2881 39.2 2761 221 216
70 8 2.0 4.0 34.1 1618 34.1 1523 40.9 3196 40.9 3071 270 266
95 8 2.0 4.0 35.9 1928 35.9 1823 42.7 3596 42.7 3459 322 320
120 8 2.0 4.0 37.3 2214 37.3 2105 44.1 3942 44.1 3800 365 365
150 8 2.5 4.0 38.9 2555 38.9 2441 46.9 4778 46.9 4620 409 412
185 8 2.5 4.0 40.7 2958 40.7 2833 48.9 5295 48.9 5124 461 468
240 8 2.5 4.0 43.3 3580 43.3 3441 51.3 6034 51.3 5854 533 546
300 8 2.5 4.0 45.3 4211 45.3 4065 53.7 6844 53.7 6648 600 620
400 8 2.5 4.0 48.9 5300 48.9 5129 57.1 8099 57.1 7882 687 713
500 8 2.5 4.0 52.5 6367 52.5 6182 61.1 9404 61.1 9162 775 817
630 8 2.5 4.0 56.6 7751 56.6 7537 65 10996 65 10730 877 933
800 8 2.5 4.0 60.5 9481 60.5 9242 69.3 12976 69.3 12673 980 1054

Copper core STA Armoured XLPE Insulated 35KV Medium Voltage Power Cables armoured power cable drawing
