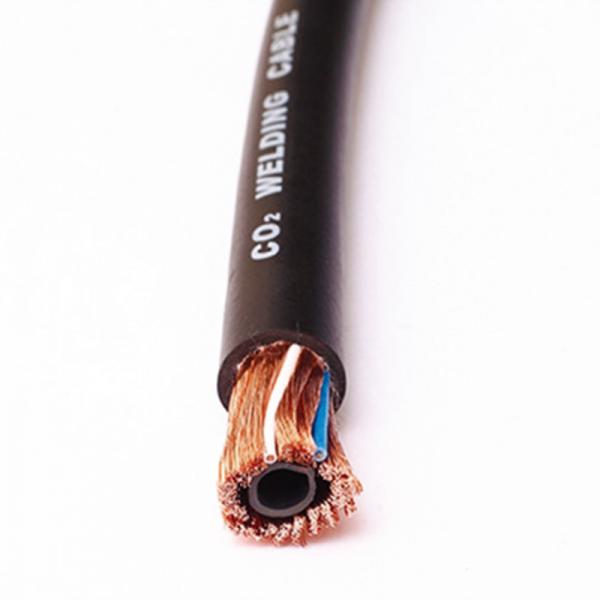

Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable

Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable image

Get a Quote Email to us

Brand Name :
Yi Lan

Certification :
ISO 9001, SGS

Place of Origin :
China

MOQ :
50pcs

Price :
Negotiable

Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :
5000pcs per month

Delivery Time :
30-40days according to quantity

Packaging Details :
Packing in steel pallet

Name :
25mm2 flexible cable

Type :
LOW VOLTAGE

Application :
Industrial

nsulation Material :
Rubber

Model Number :
welding torch cable

Conductor :
Copper Core

230 A CO2 5m carbon dioxide welding torch cable

Carbon dioxide torch cable

Carbon dioxide cutting torch cable, common elastomer compound and HOFR for general purposes, used in the welding industry, namely Mig Tig Co2 coaxial cable welding equipment. Our cables range from 16 Sq.mm to 95Sq.mm. Coverage: The commonly used general purpose elastomer compound should be SE 1 type, which is confirmed to meet the requirements of IS 6380:1984. The general-purpose elastomer compound that is heat-resistant and oil-resistant should be SE 3 type, which is confirmed to meet the requirements of IS 6380:1984.

NAME	MODEL	USAGE	FEATURE
Lightweight rubber cable	YQ,YQW	Household appliances, small electric equipment	Soft, light and good bending performance;
Lightweight rubber cable	YQ,YQW	Household appliances, small electric equipment	YQW has weather resistance and certain oil resistance
Medium-sized rubber cable	YZ,YZW	Industry, widely used in agricultural electrification	YZW has weather resistance and certain oil resistance
Heavy rubber cable	YC,YCW	Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.	Has good versatility, complete series specifications, good performance and stability;
Heavy rubber cable	YC,YCW		YCW has weather resistance and certain oil resistance
Waterproof rubber cable	JHS,JHSB	Diving motor	Good bending performance, can withstand frequent movement
Welding machine rubber cable	YH,YHF	Electric welding machine	/
/	YHD	Tinned power cable for field use	/

Carbon dioxide cutting torch cable application

1- Used for CO2/MIG/MAG welding gun.

2-Special cable for the secondary side of the welding machine

3- The connector between the electrode holder and the welding machine.

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area	No./diameter of stranding	Nominal sheath thickness (mm)	Overall diameter		Max. conductor resistance at 20℃
(mm2)	(mm)		(mm)		(Ω/km)
			Min.	Max.	Without tinned	With tinned
10	322/0.20	1.8	7.5	9.7	1.91	1.95
16	513/0.20	2	9.2	11.5	1.16	1.19
25	798/0.20	2	10.5	13	0.758	0.78
35	1121/0.20	2	11.5	14.5	0.536	0.552
50	1596/0.20	2.2	13.5	17	0.379	0.39
70	2214/0.20	2.4	15	19.5	0.268	0.276
95	2297/0.20	2.6	17	22	0.198	0.204
120	1702/0.30	2.8	19	24	0.161	0.164
150	2135/0.30	3	21	27	0.129	0.132
185	1443/0.40	3.2	22	29	0.106	0.108
240	1908/0.40	3.8	25	35	0.0801	0.0817

Carbon dioxide cutting torch cable features

1. IEC, ASTM, DIN, BS standards; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance, low voltage;

3. The long-term working temperature is 65℃;

4. Environmental protection, non-toxic smell;

5. Excellent bending performance allows it to move and twist frequently;

6. It has the ability of heat resistance, aging resistance, light weight and long-term use;

7. Our mass production provides customers with higher quality and lower prices.

8 . Our company uses irradiation technology to improve all aspects of rubber performance.

9. As a sheath material, rubber is specially used for welding cables, with excellent tear resistance and wear resistance

We are China Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
