Copper Conductor XLPE Multicore Control Cable WIth PVC Sheath CE / KEMA

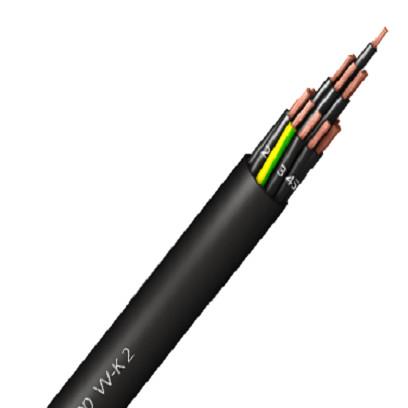

Copper Conductor XLPE Multicore Control Cable WIth PVC Sheath CE / KEMA image
Brand Name :
HOLD-ONE
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
China
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums
Conductor :
Copper
Insulation :
XLPE
Sheath :
PVC
Color :
Black
Place :
ShangHai
Copper Conductor XLPE Insulated Control Cables WIth PVC Sheath
Construction
1. Conductor : Fine-wire strand made of bare copper wires
2. core insulation of polyvinylchloride (PVC).
3. Three core or more with protective greenyellow conductor in the outer layer.
4. The outer sheath, based on PVC, is extremely resistance to oil and chemicals.
PVC Insulated PVC sheathed control cable is suitable for connecting wires between electric equipment in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/1000v(A.C.).The products has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , Heat-aging,environmental stress and flame-retardant,The product has simple construction and convenient to use and could be laid with no restriction of different levels.
Type: Multicore Control Cable
Rated Voltage: 450/750V
Conductor: Copper
Insulation: Polyvinyl chloride (PVC)
Armour: Steel tape armoured or steel wire armoured
Outer sheath: Polyvinyl chloride (PVC)
Application
|
Suitable for the interconnection in controlling, protecting and measuring system |
Number of core | 2~61 cores |
Rated Voltage | 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004 |
Test Voltage
|
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
|
Maximum conductor operating temperature | 90℃ for XLPE insulation 70℃ for PVC insulation |
Core’s recognition |
Up to 5 core with color Above 5 core with number
|
Color of sheath | Black and customer designated |
Manufactured Standards |
IEC 60227-2007, IEC 60502-2004
|
Conductor type | IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data |
Packing | Cable can be supplied in any length required. |
Standard |
IEC 60227-2007 IEC 60502-2004
|
We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
We are China Copper Conductor XLPE Multicore Control Cable WIth PVC Sheath CE / KEMA manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
