Copper Conductor Flexible Network Cable Shielded Cat6 FTP Ethernet Broadband Connection
Copper Conductor Flexible Network Cable Shielded Cat6 FTP Ethernet Broadband Connection image
Brand Name :
JHY CABLE
Model Number :
FTP CAT6 NETWORK CABLE
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking,Broadband Connection
Type :
Cat 6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
Bare Copper
Shield :
FTP
JHY Cable Copper Conductor Shielded Cat6 FTP Ethernet Network Cable
Production Description:
1. Production Application
A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Use range
This product supports a variety of wiring structures and a variety of transmission media, suitable for high-speed, large-capacity and multimedia integrated business data communication network intelligent building installation engineering; network information engineering installation wiring, home network wiring.
4. Features
Characteristic impedance: 100±15Ω
Frequency range: 100-250MHz
Attenuation: 1MHz: ≤ -2 dB / 100M, 100MHz: ≤-22 dB/100M
- High purity oxygen free copper
- Imported ultra low dielectric constant polyethylene insulation
- Flame retardant, environmentally friendly, corrosion resistant, oil resistant PVC sheath
- Precision jet printer with precise length
5. Tabular data
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. Drain Wire: | Tinned Copper | |
| 5. Screening: | Aluminum Foil Overall Screening | |
| 6. rip cord: | Nylon | |
| 7.Separator: |
cross filler |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 16.3 kg | 305 m/ roll pull box | 42 x 24 x 42 |
800 box |

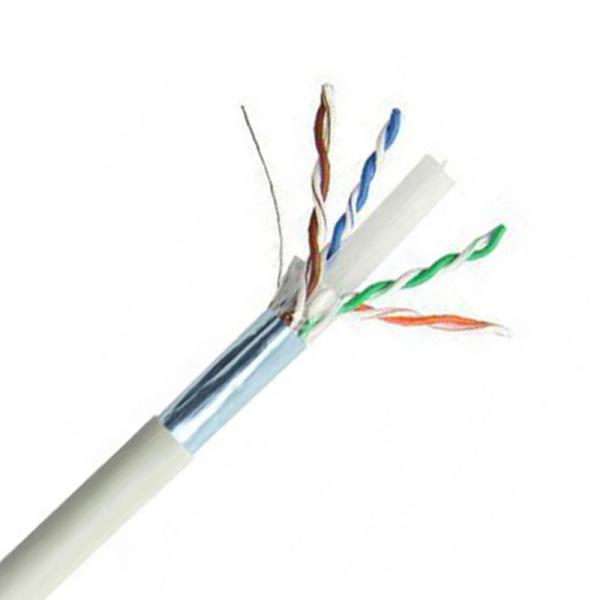

6. Product Image
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China Copper Conductor Flexible Network Cable Shielded Cat6 FTP Ethernet Broadband Connection manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Flexible Network Cable, network bulk cable, sftp ethernet cableSimilar Or Related
-

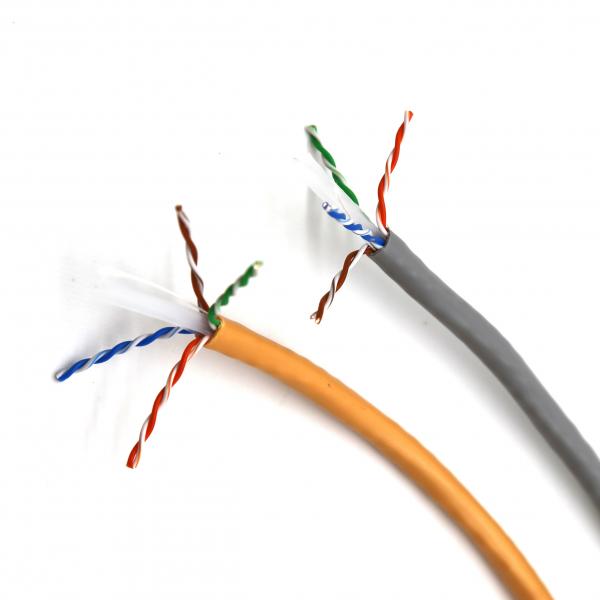

23AWG BC Conductor Flexible Network Cable Cat6 UTP Ethernet 1000FT HDPE Insulation
-

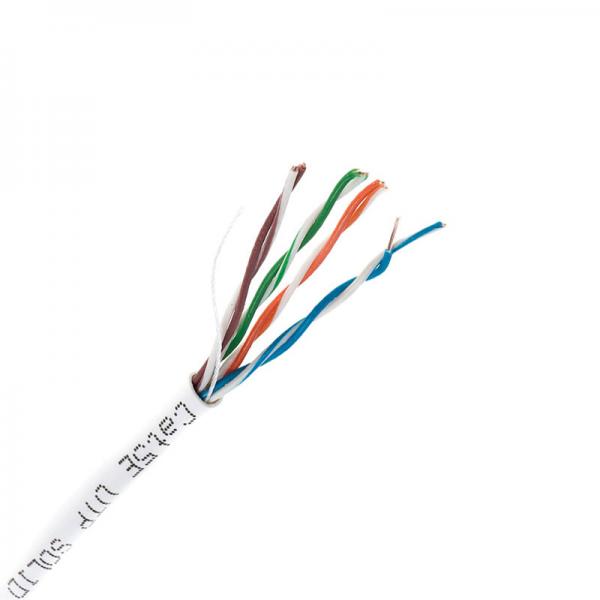

4 Pairs 24AWG Flexible Network Cable Solid Bare Copper For Communication Cat5/5e UTP
-

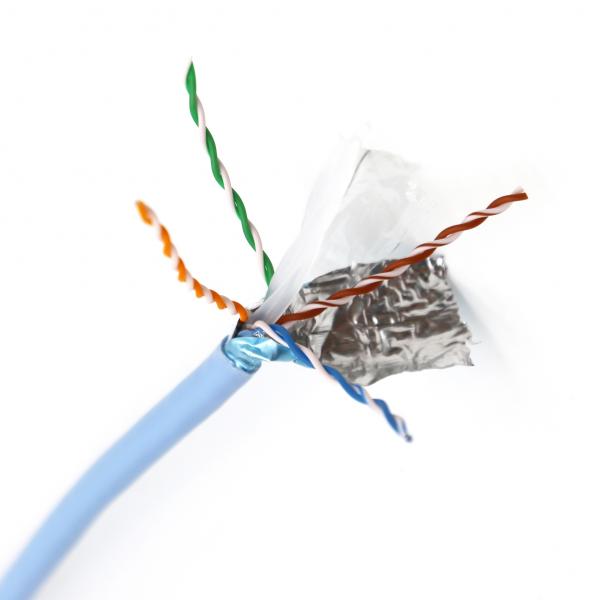

1000FT CAT6A Ethernet Network Bulk Cable , Solid FTP RISER COPPER Network Cable 10G 23AWG
-
