Copper Conductor Custom Control Cables Flame Retardant Halogen Free

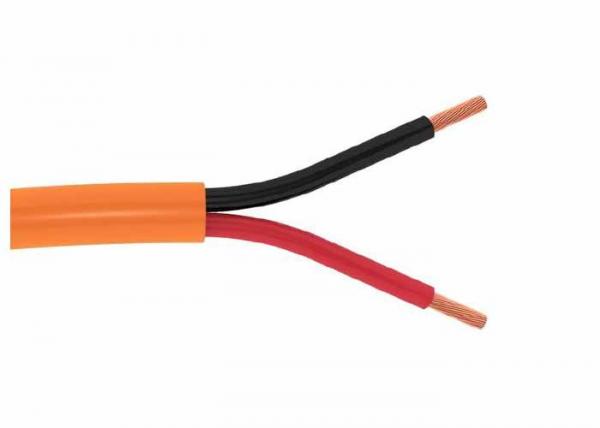

Copper Conductor Custom Control Cables Flame Retardant Halogen Free image
Brand Name :
SHAN CABLE
Model Number :
KVV
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
300m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums
Conductor :
Copper
Insulation :
PVC
Sheath :
PVC
Color :
Black
Core :
2 to 61
Origin :
Shanghai,China
Copper Conductor Custom Control Cables Flame Retardant Halogen Free
Construction:
Conductor: Class 1&2 Copper Conductor
Insualtion: PVC
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
Specifications:
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Overall Diameter | Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
|
| min | max | |||||
| 4×0.5 | 0.6 | 1.2 | 7.3 | 9.2 | 0.013 | 39 |
| 4×0.75 | 0.6 | 1.2 | 7.6 | 9.6 | 0.011 | 26 |
| 4×1.0 | 0.6 | 1.2 | 8 | 10 | 0.01 | 19.5 |
| 4×1.5 | 0.7 | 1.2 | 9 | 11.3 | 0.01 | 13.3 |
| 4×2.5 | 0.8 | 1.2 | 10.5 | 13.1 | 0.009 | 7.98 |
| 5×0.75 | 0.6 | 1.2 | 7.9 | 9.9 | 0.013 | 26 |
| 5×1.0 | 0.6 | 1.2 | 8.3 | 10.3 | 0.011 | 19.5 |
| 5×1.5 | 0.7 | 1.2 | 9.8 | 12.2 | 0.01 | 13.3 |
| 5×2.5 | 0.8 | 1.5 | 11.5 | 14.3 | 0.009 | 7.98 |
| 7×0.5 | 0.6 | 1.2 | 8.5 | 10.6 | 0.013 | 39 |
| 7×0.75 | 0.6 | 1.2 | 8.9 | 11.1 | 0.011 | 26 |
| 7×1.0 | 0.6 | 1.2 | 9.3 | 11.7 | 0.01 | 19.5 |
| 7×1.5 | 0.7 | 1.2 | 10.6 | 13.2 | 0.01 | 13.3 |
| 7×2.5 | 0.8 | 1.5 | 13.1 | 16.2 | 0.009 | 7.98 |
FAQ
Q1. Can I have a sample order for cable?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production needs 2-3 weeks .
Q3. Do you have any MOQ limit for cable?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for yolarlink cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
We are China Copper Conductor Custom Control Cables Flame Retardant Halogen Free manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
