Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable

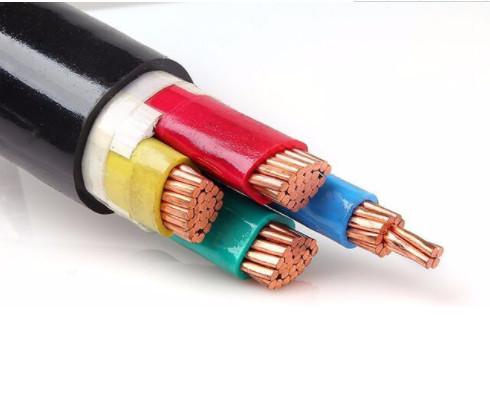

Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Price :
Negotiable
Jacket :
PVC Or Rubber
Conductor material :
Copper
Application :
Underground,Power Station
Type :
Low Voltage
Insulation material :
PVC
Core :
Multi-core
Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable
1. Conductor: Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
2. class 1: solid, round(RE) or sector (SE)
3. class 2: multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted
4. Insulation: PVC compound DIV-4 acc. to HRN HD 603.1
5. Filler: extruded elastomer or plastomer compound or
6. wrapped thermoplastic tapes
7. Sheath: PVC compound DMV-5 acc. to HRN HD 603.1
8. sheath colour: black
Low voltage copper conductor PVC insulated Cable PVC sheathed cable
|
Low Voltage Power Cable Voltage rating
|
No. x Nominal Cross Section of Conductor No. x mm2
|
||||
|
single core
|
two cores
|
three cores
|
Four cores
|
five core
|
|
|
0.6/1 kV
|
1×4 mm2
|
2×4 mm2
|
3×4 mm2
|
4×4 mm2
|
5×2.5 mm2
|
|
1×6 mm2
|
2×6 mm2
|
3×6 mm2
|
4×6 mm2
|
5×4 mm2
|
|
|
1×10 mm2
|
2×10 mm2
|
3×10 mm2
|
4×10 mm2
|
5×6 mm2
|
|
|
1×16 mm2
|
2×16 mm2
|
3x16mm2
|
4×16 mm2
|
5×10 mm2
|
|
|
1x 25 mm2
|
2x 25 mm2
|
3x 25 mm2
|
4×25 mm2
|
5×16 mm2
|
|
|
1×35 mm2
|
2×35 mm2
|
3x 35 mm2
|
4×35 mm2
|
5×25 mm2
|
|
|
1×50 mm2
|
2×50 mm2
|
3x 50 mm2
|
4×50 mm2
|
5×35 mm2
|
|
|
1×70 mm2
|
2×70 mm2
|
3x 70 mm2
|
4×70 mm2
|
5×50 mm2
|
|
|
1×95 mm2
|
2×95 mm2
|
3x 95 mm2
|
4×95 mm2
|
5×70 mm2
|
|
|
1×120 mm2
|
2×120 mm2
|
3x 120 mm2
|
4×120 mm2
|
5×95 mm2
|
|
|
1×150 mm2
|
2×150 mm2
|
3x 150 mm2
|
4×150 mm2
|
5×120 mm2
|
|
|
1×185 mm2
|
2×185 mm2
|
3x 185 mm2
|
4×185 mm2
|
|
|
|
1×240 mm2
|
2×240 mm2
|
3x 240 mm2
|
4×240 mm2
|
|
|
|
1×300 mm2
|
|
3x 300 mm2
|
4×300 mm2
|
|
|
|
1×400 mm2
|
|
|
|
|
|
|
1×500 mm2
|
|||||
Low voltage copper conductor PVC insulated Cable PVC sheathed cable
We are China Copper Conductor 4 Core 300mm2 Low Voltage PVC Flexible Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
