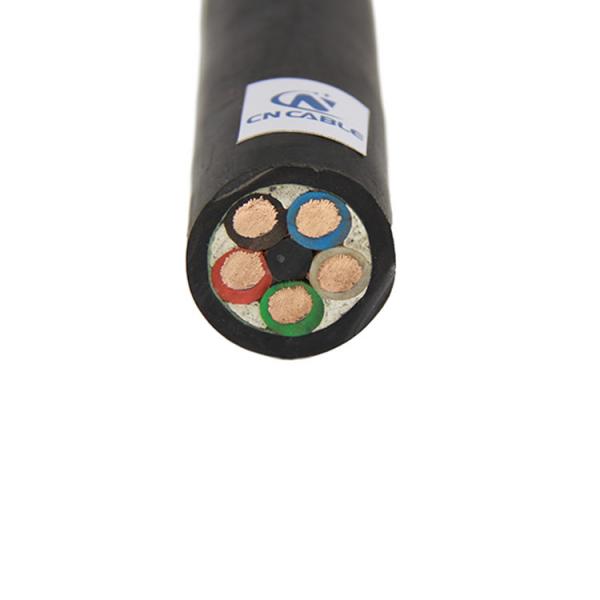

Copper Conductor 4 5 Cores Rubber Insulated Cable
Copper Conductor 4 5 Cores Rubber Insulated Cable image
High quality H05RN-F/ H05RNH2-F 300/500V Copper Conductor 2 3 4 5 Cores Rubber Insulated Cable
| Product Description | Contact us |
Application:
These cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments. Such as used in domestic premises, kitchens, offices and industrial equipment where the cables are subjected to low mechanical stress.
Standard:
VDE 2082 Part-4
Cable Construction:
Conductor: Flexible bare copper wire , class 5
Technical Characteristics:
Rated voltage: 300/500V
Product date sheet
| H05RN-F | |||||||
| Core No. | Conductor size | Conductor | Insulation | Sheath | Approx. cable dia. | Approx Cable weight | |
| Single wire dia. | Approx. Diameter | Nominal thickness | Nominal thickness | ||||
| pcs | mm2 | mm | mm | mm | mm | mm | kg/km |
| 2 | 0.75 | 0.20 | 1.14 | 0.60 | 0.80 | 6.73 | 64 |
| 2 | 1.00 | 0.20 | 1.34 | 0.60 | 0.90 | 7.36 | 78 |
| 2 | 1.50 | 0.25 | 1.60 | 0.80 | 0.90 | 8.83 | 113 |
| 3 | 0.75 | 0.20 | 1.14 | 0.60 | 0.80 | 6.73 | 69 |
| 3 | 1.00 | 0.20 | 1.34 | 0.60 | 0.90 | 7.36 | 85 |
| 3 | 1.50 | 0.25 | 1.60 | 0.80 | 1.00 | 9.03 | 127 |
| 4 | 0.75 | 0.20 | 1.14 | 0.60 | 0.80 | 7.35 | 85 |
| 4 | 1.00 | 0.20 | 1.34 | 0.60 | 0.90 | 8.03 | 104 |
| 4 | 1.50 | 0.25 | 1.60 | 0.80 | 1.00 | 9.88 | 157 |
| 5 | 0.75 | 0.20 | 1.14 | 0.60 | 0.90 | 8.23 | 106 |
| 5 | 1.00 | 0.20 | 1.34 | 0.60 | 1.00 | 8.97 | 130 |
| 5 | 1.50 | 0.25 | 1.60 | 0.80 | 1.10 | 11.01 | 195 |
Click for More Information
| Packaging & Shipping | Contact us |
Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
| Company Information | Contact us |
1.10+ years experience of export business
2. Flexible business model ,rich customer groups
3 .Wide range of cable products , rich resources in local market
4.Some Export Area: Australia, Bangladesh, Canada, Chile, CoteD`lvoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Iraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal, Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda,Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.
| Certifications | Contact us |
| Our Services | Contact us |
1. Product consultation,analysis, design , production
2. Provide industry information, Product Training , Assist Product Marketing
3. Provide project supportsuch as tender assistant, cooperate visit customers , FAT support
4.Complete Quality systemand docs available, faster lead time, good quality, strong technical support, free samples
5. OEM service
6. Other services customized by clients
| FAQ | Contact us |
Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.
Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
Other questions ? Welcome to contact us immediately !
Looking forward to cooperating with you
We are China Copper Conductor 4 5 Cores Rubber Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
