Copper Clad Steel Conductor 4AWG(1/5.19mm) HS 40% Conductivity ASTMB910/B910M
Copper Clad Steel Conductor 4AWG(1/5.19mm) HS 40% Conductivity ASTMB910/B910M image
Copper clad steel conductor 4AWG(1/5.19mm) HS 40% conductivity, ASTMB910/B910M Product Description:
Copper clad steel conductor (CCS) provide efficient and economical overhead line construction and are typically used
for power conductors, overhead communication lines (including telephone, telegraph and signal lines),
overhead ground wires, guy wires, aerial cable messenger, and catenary cables for railroad electrification.
Copper clad steel conductor 4AWG(1/5.19mm) HS 40% conductivity, ASTMB910/B910M STANDARDS :
ASTM B193 – Standard Test Method for Resistivity of Electrical Conductor Materials
ASTM B227 – Standard Specification for Hard-Drawn Copperclad Steel Wire
ASTM B228 – Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors
ASTM B258 – Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round
ASTM B910 – Standard Specification for Annealed Copperclad Steel Wire
Copper clad steel conductor 4AWG(1/5.19mm) HS 40% conductivity, ASTMB910/B910M Technical Parameters:
| 40% CONDUCTIVITY— HIGH STRENGTH | |||||||||
| CONDUCTOR SIZE |
STRANDS | OVERALL DIAMETER |
AREA | MIN. BREAKING LOAD |
WEIGHT | NOM. DC RESISTANCE |
|||
| AWG | IN. | MM | CMIL | (MM^2) | LBF | KGF | KG/KM | Ω/KM | |
| #4 AWG | 1 | 0.204 | 5.19 | 41,740 | 21.2 | 3435 | 1558 | 173.9 | 2.0366 |
APPLICATIONS:
Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire.it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft.

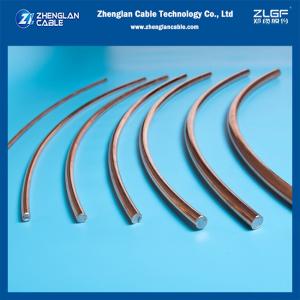

Copper clad steel conductor 4AWG(1/5.19mm) HS 40% conductivity, ASTMB910/B910M Image:
Support and Services:
Copper Clad Steel technical support and services include:
- Providing product information and technical support.
- Assistance with product selection.
- Guidance with product installation and maintenance.
- Providing product training.
- Safety inspections and testing.
- Repair and replacement services.
- Warranty services.
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
We are China Copper Clad Steel Conductor 4AWG(1/5.19mm) HS 40% Conductivity ASTMB910/B910M manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 4AWG Copper clad steel conductor, ASTMB910 Copper clad steel conductor, Copper Clad Steel, HS Copper clad steel conductor
