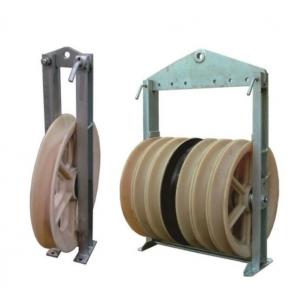

Construction Stringing Triple Pulley Block 60KN 660mm
Construction Stringing Triple Pulley Block 60KN 660mm image
Brand Name :
Suntech
Model Number :
SHD660X100MM
Certification :
ISO9001
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800pcs per month
Delivery Time :
5-7 days after deposit
Packaging Details :
Exported Box or Pallets
Model :
660 MM Stringing Block
Sheave :
1,3,5
Rated Load :
60KN
Material :
MC Nylon Sheave
Weight :
150kg
Item :
Stringing Block
Construction 60KN 660mm Stringing Triple Pulley Block
3 Sheaves 660 mm diameter stringing pulley block for transmission line construction tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
660 mm stringing blocks
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized
We are China Construction Stringing Triple Pulley Block 60KN 660mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 60KN Triple Pulley Block, 660mm Triple Pulley Block, conductor stringing blocks, Stringing Triple Pulley BlockSimilar Or Related
