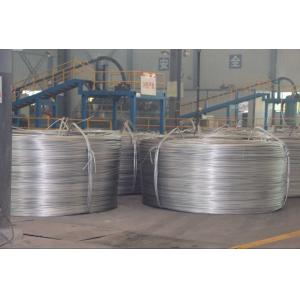

Conductor Material Aluminium Wire Rod EC Grade 0.1-20mm
Conductor Material Aluminium Wire Rod EC Grade 0.1-20mm image
Conductor Material Aluminium Wire Rod EC Grade 0.1-20mm
Only copper is superior to aluminum among base metals, and even then, only by 33%. Aluminum does, however, have one clear benefit: it is lighter. When compared to copper wire, aluminum wires are two times lighter and have a cross section that is 1.5 times larger to carry the same current. One of the most crucial factors for high-voltage power lines that carry electricity over vast distances is weight. Thus, the primary overhead power lines are constructed entirely of aluminum wires.
Specification
Aluminum Rod
Aluminum rod is mainly used for processing wire and cable, by drawing process, the wire is drawn into a single wire of different diameters, then stranded composite cable conductor. Aluminum rods are made by melting aluminum ingots, the liquid aluminum flows out in a certain direction, and solidified into aluminum rods.
| Chem ical Com ponents (%) | ||||||||||||||
| Type | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Other | Al | ||
| per | Toal | |||||||||||||
| 1350 | 0.1 | 0.4 | 0.05 | 0.01 | – | 0.01 | – | 0.05 | 0.03 Ga, 0.05B 0.02 V+Ti |
– | – | 0.03 | 0.1 | 99.5 |
| 1370 | 0.1 | 0.25 | 0.02 | 0.01 | 0.02 | 0.01 | – | 0.04 | 0.03 Ga, 0.02B 0.02 V+Ti |
– | – | 0.02 | 0.1 | 99.7 |
| 1A60 | 0.1 | 0.25 | 0.01 | – | – | – | – | – | – | 0.02 R+Ti +Mn+Gr |
– | 0.03 | – | 99.6 |
| Conductivity and Strength Tens ile | |||||
| Type | Conductivity (20ºC)/O·m <= | Conductivity (20ºC)/%IACS >= | Strength Tens ile Mpa | Elongation/% (200m m gauge length) >= | |
| 1350 | 0 | 27.9 | 61.8 | 60-95 | 25 |
| H12 | 28.03 | 61.5 | 85-115 | 12 | |
| H13 | 28.08 | 61.4 | 105-135 | 10 | |
| H14 | 28.12 | 61.3 | 120-150 | 8 | |
|
1370 |
0 | 27.9 | 61.8 | 60-95 | 25 |
| H12 | 28.01 | 61.55 | 85-115 | 11 | |
| H13 | 28.03 | 61.5 | 105-135 | 8 | |
| H14 | 28.05 | 61.47 | 115-150 | 5 | |
| H16 | 28.08 | 61.4 | 130-160 | 5 | |
|
1A60 |
0 | 27.55 | 62.68 | 60-90 | 25 |
| H12 | 27.85 | 61.91 | 80-110 | 13 | |
| H13 | 28.01 | 61.55 | 95-115 | 11 | |
| H14 | 28.01 | 61.55 | 110-130 | 8 | |
| H16 | 28.01 | 61.55 | 120-150 | 5 | |

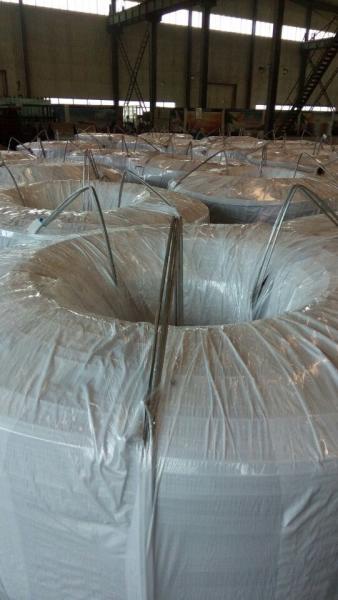

Product Pictures:
More Products:
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
We are China Conductor Material Aluminium Wire Rod EC Grade 0.1-20mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
