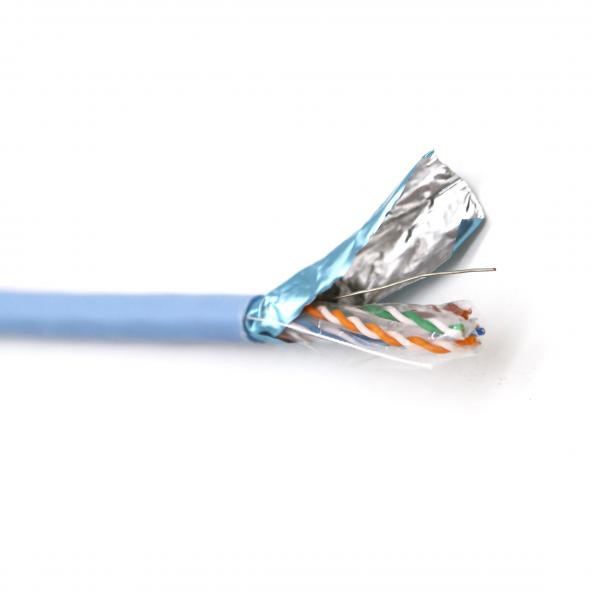

Computer Network Cat 6a Lan Cable IEC 11801 HDPE Insulated 8 Cores PE LSZH PVC Outer Sheath
Computer Network Cat 6a Lan Cable IEC 11801 HDPE Insulated 8 Cores PE LSZH PVC Outer Sheath image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
CE ROHS ISO9001
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
OFC copper
Diameter :
0.56mm 0.57mm 0.58mm
Size :
23AWG/24AWG/26AWG
Insulation :
HD-PE
Shield :
UTP, FTP, SFTP
Cross :
Plastic
Sheath :
PE LSZH PVC outer sheath
Color :
Blue, gray, black or Customized
Cable length :
1000 Feet (305M)
Packing :
Carton
Application :
Computer,Communication
Computer network IEC 11801 HDPE insulated 8 cores Cat 6a lan cable
Production Description:
1. Production Construction:
| Conductor | Material & Size | Oxygen Free Copper, 23AWG |
| Insulation | Material | HDPE (CMI-75E) |
| Thickness | Min, Average Thickness: 0.45mm/ Min. Thickness: 0.38mm | |
| Color Code |
· Blue & White/ Blue; Orange & White/ Orange; · Green & White/ Green; Brown & White/ Brown |
|
| Jacket | Material | 75℃ PVC Compound / 75℃ LSZH |
| Thickness | Min, Average Thickness: 0.585mm/ Min. Thickness: 0.458mm | |
| Overall Diameter | 7.8mm +/- 0.3mm | |
| Shield | Material | Aluminum-Mylar Tape |
| Braid | Material | Copper wire/ Tinned copper wire/ Aluminum magnesium alloy wire |
2. Transmission Requirements
|
Frequency (MHz) |
Max. Attenuation (dB/100m) |
Min. Pr-Pr Next (dB/100m) |
Min. Psnext (dB) |
Min Return Loss (dB) |
| 1 | 2.1 | 74.3 | 72.3 | 20.0 |
| 8 | 5.6 | 60.8 | 58.8 | 24.5 |
| 16 | 7.5 | 56.2 | 54.2 | 25.0 |
| 25 | 9.4 | 53.3 | 51.3 | 24.2 |
| 100 | 19.1 | 44.3 | 42.3 | 19.0 |
| 250 | 31.1 | 38.3 | 36.3 | 15.6 |
| 400 | 40.1 | 35.3 | 33.3 | 13.8 |
| 500 | 45.3 | 33.8 | 31.8 | 13.0 |
3. Production Specifications:
- Connecting between Ethernet and network device
- Stranded 568B wire
- Meets or exceeds Cat5e specifications
- 24AWG , 4 Pair twisted Wires, 350Mhz speed
- Molded Strain Relief .
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Application
Connects a computer to a printer, router , switch box or other network component in a wired Local Area Network.
6. Tabular data
Construction
| 1. Conductor |
Solid bare copper |
|
| 2. Insulation | HDPE | |
| 3. shield | AL + braid | |
| 4. sheath | PVC | |
| 5. Cross | Environment protection PE | |
| 6. Rip cord | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 16.3 kg | 305 m per box | 42 x 42 x 24 |
Carton box |
7. Product Image
Product Package
Fluke Test Report
Product compare
Jinhuanyu product other products
8. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
