Class 5 Building Wire And Cable with PVC Insulated Non – Sheathed / Voltage size: 300/500V

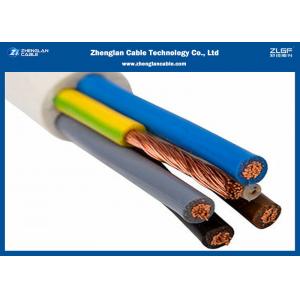

Class 5 Building Wire And Cable with PVC Insulated Non – Sheathed / Voltage size: 300/500V image
Class 5 Building Wire And Cable with PVC Insulated Non – Sheathed / Voltage size: 300/500V
Place of Origin:Henan, China (Mainland)
Brand Name:ZHENGLAN
Model Number:RV
Type:Insulated
Application:used in the switch control
Shelf Life:30 years
Color:Red/Yellow/Blue/Green/Black…
Conductor Material:100% oxygen-free Copper
Conductor Type:Solid / Stranded
Insulation Material:PVC
Packaging Details:100 feet in coil or other as customized
Descriptions
Ordinary PVC Sheathed cord
Code designation:60227 IEC 53 (International),RVVB 300/500v(China)
Building Wire And Cable Constructions
1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5
2. Insulation:PVC/D
3.Sheath:PVC type ST5
Building Wire And Cable Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Building Wire And Cable Standards
International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Building Wire And Cable Technical data:
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Model | Rated voltage | Description |
RV | 300/500V | Copper core PVC insulated flexible wire |
RV | 450/750V | Copper core PVC insulated flexible wire |
RVB | 300/300V | Copper core PVC insulated flat flexible wire |
RVS | 300/300V | Copper core PVC insulated twisted flexible wire |
RVV | 300/300V | Copper core PVC insulated and sheathed flexible wire |
RVV | 300/500V | Copper core PVC insulated and sheathed flexible wire |
RVVB | 300/300V | Copper core PVC insulated and sheathed flat flexible wire |
RV-90 | 450/750V | Copper core PVC insulated heat-resisting flexible wire with rated temperature 90℃ |
We are China Class 5 Building Wire And Cable with PVC Insulated Non – Sheathed / Voltage size: 300/500V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
